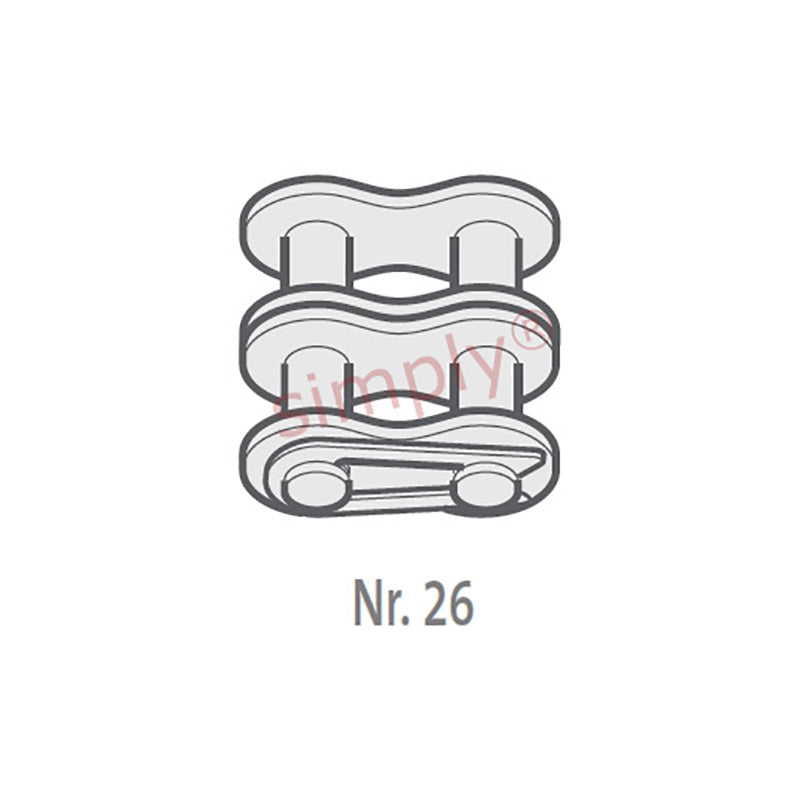

• Renold Blue Box 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
  • Renold
1 2

SKU: 20B-2-BB-NO26-RENOLD

Renold Blue Box 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch

Renold Blue Box 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
$48.72 ex VAT
$48.72 ex VAT
Sale Sold out

In stock

Price Break
2+ $32.64
5+ $30.80
10+ $30.44
29+ $30.07
49+ $29.70
75+ $29.34
100+ $27.50
200+ $27.14
250+ $26.77
500+ $26.40
1000+ $25.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 19.56mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 26.42mm
Plate Width Inner max (E) 4.62mm
Plate Width Outer max (F) 3.61mm
Pin Diameter max (G) 10.19mm
Pin Length max (H1) 76.7mm
Connecting Link Extension max (J) 2.7mm
ISO606 Tensile Strength min 170000 N
Weight 0.08kg/m
