SKU: 20B-2-SD-NO26-RENOLD
Renold SD 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold SD 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
$57.49
ex VAT
Regular price
Sale price
$57.49
ex VAT
In stock
Price Break
2+
$38.51
5+
$36.35
10+
$35.91
29+
$35.48
49+
$35.05
75+
$34.62
100+
$32.45
200+
$32.02
250+
$31.59
500+
$31.15
1000+
$30.29
Quantity
Couldn't load pickup availability
Share this product
Description
Description

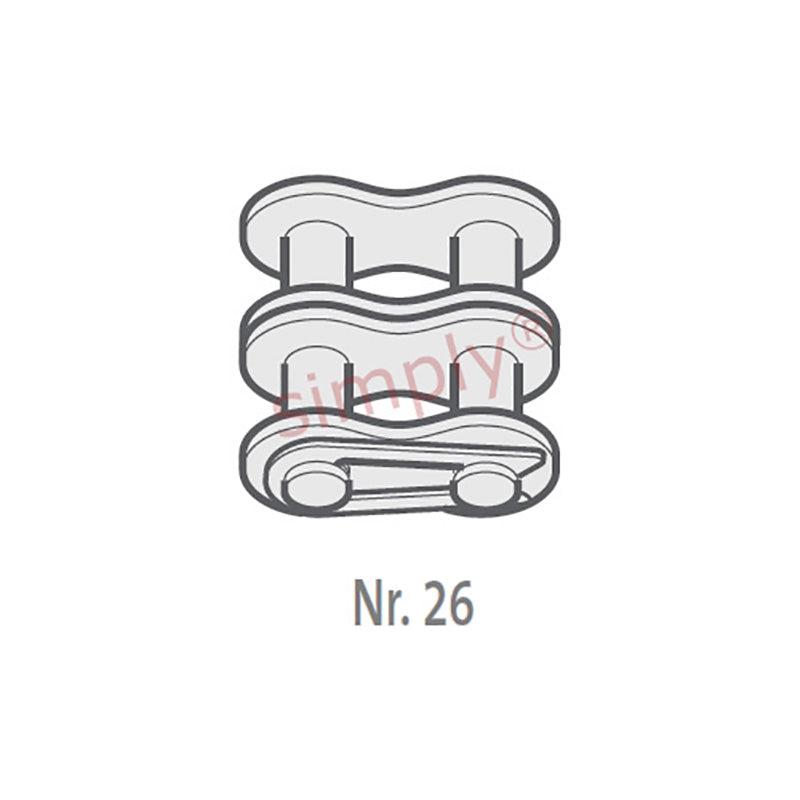

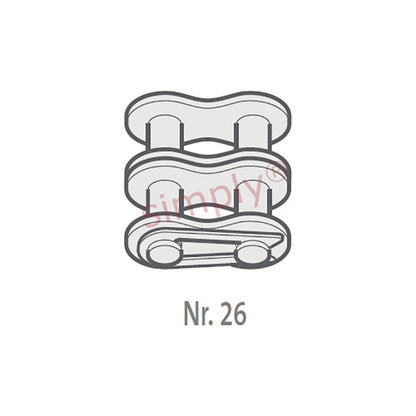

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.3mm |
| Plate Width Inner max (E) | 4.5mm |
| Plate Width Outer max (F) | 3.5mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 77.2mm |
| Connecting Link Extension max (J) | 3.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.08kg/m |
