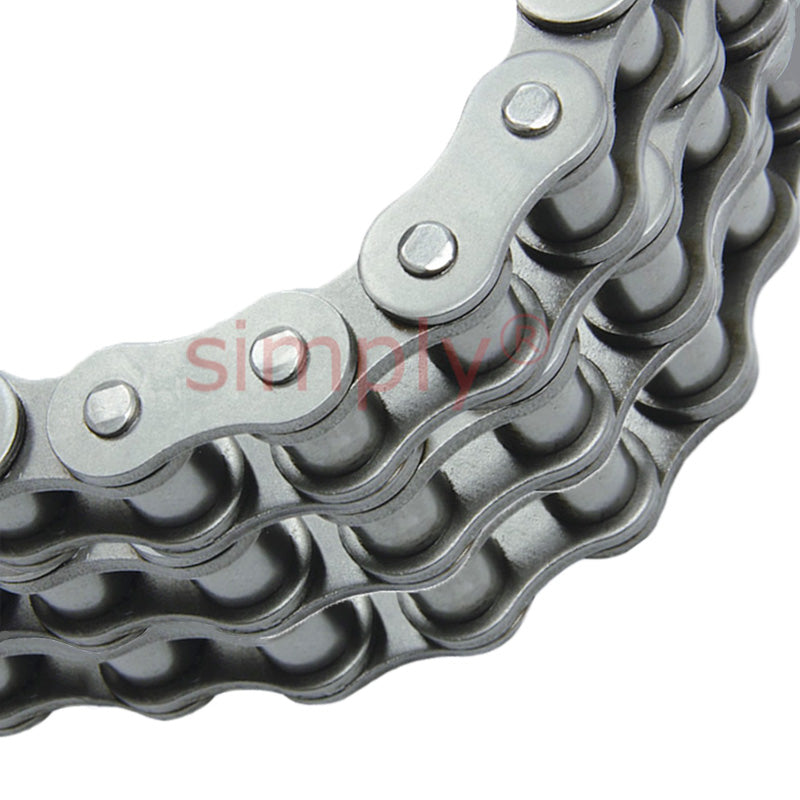

• Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
1 1

SKU: 20B-3-2.5MTR-MB

Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres

Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
$253.78 ex VAT
$253.78 ex VAT
Sale Sold out

In stock

Price Break
2+ $169.99
5+ $160.44
10+ $158.53
29+ $156.62
49+ $154.71
75+ $152.80
100+ $143.25
200+ $141.34
250+ $139.43
500+ $137.52
1000+ $133.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (P) 31.75mm = 1.25 (1-1/4) inch
Roller Diameter (D1 max) 19.05mm
Width between inner plates (B1 min) 19.56mm
Pin dia meter (D2 max) 10.19mm
Pin length (L max) 114.2mm
Pin length (Lc max) 117.9mm
Inner plate depth (H2 max) 26.4mm
Plate thickness (T max) 4.5/3.5mm
Ultimate tensile strength (Q min) kN/LB 250.0/56818
Average tensile strength (Q0) kN 290
Transverse pitch (Pt) mm 36.45
Weight per meter (q) kg/m 10.82
