• Renold Standard Duty 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch - 2.5 Metre Length
  • Renold
1 2

SKU: 20B-3-SD-2.5MTR-RENOLD

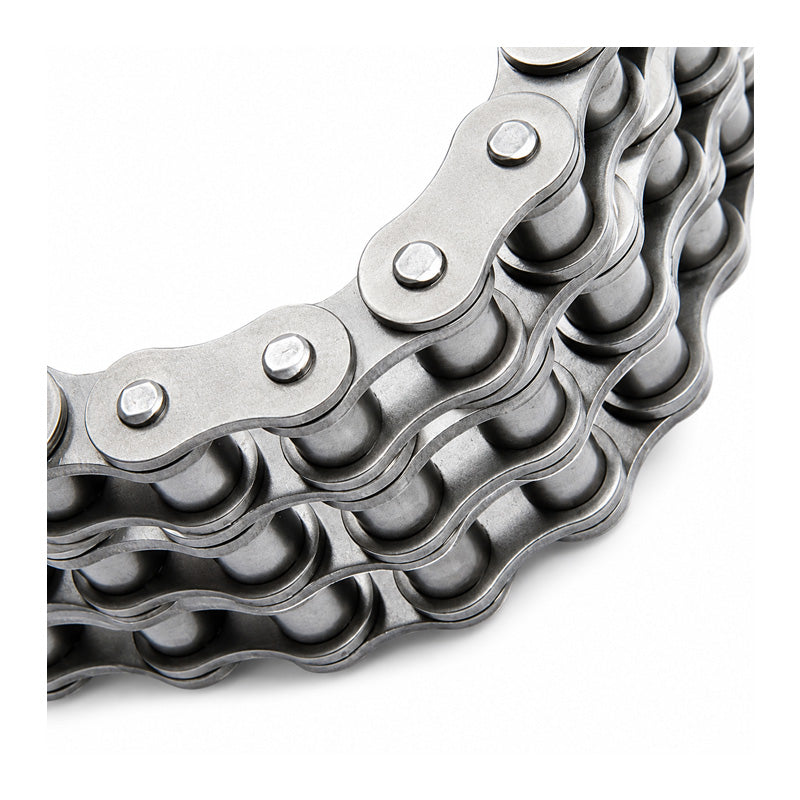

Renold Standard Duty 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch - 2.5 Metre Length

Renold Standard Duty 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch - 2.5 Metre Length
$456.22 ex VAT
$456.22 ex VAT
Sale Sold out

Equivalent to: SD20B-3

In stock

Price Break
0+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 19.56mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 26.3mm
Plate Width Inner max (E) 4.5mm
Plate Width Outer max (F) 3.5mm
Pin Diameter max (G) 10.19mm
Pin Length max (H2) 108.9mm
Connecting link extension max (J) 3.60000000000001mm
Transverse Pitch nom (K) 36.45mm
ISO606 Tensile strength min 275000 N
Weight 11.05 kg/m
