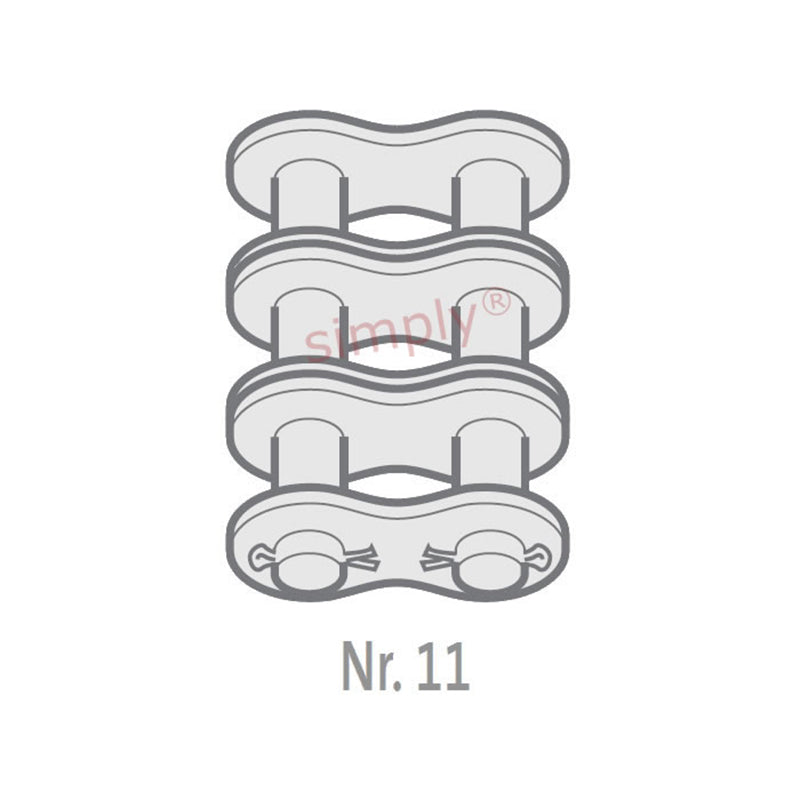

• Renold SD 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
  • Renold
1 2

SKU: 20B-3-SD-NO11-RENOLD

Renold SD 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch

Renold SD 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
$28.66 ex VAT
$28.66 ex VAT
Sale Sold out

In stock

Price Break
2+ $19.20
5+ $18.12
10+ $17.90
29+ $17.69
49+ $17.47
75+ $17.25
100+ $16.18
200+ $15.96
250+ $15.74
500+ $15.53
1000+ $15.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 19.56mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 26.3mm
Plate Width Inner max (E) 4.5mm
Plate Width Outer max (F) 3.5mm
Pin Diameter max (G) 10.19mm
Pin Length max (H1) 108.9mm
Connecting Link Extension max (J) 10.8mm
ISO606 Tensile Strength min 275000 N
Weight 0.261kg/m
