SKU: 212SPB4-MB

212X4SPB 212mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

212X4SPB 212mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$89.39 ex VAT
$89.39 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.88
5+ $56.52
9+ $55.84
19+ $55.17
49+ $54.50
74+ $53.82
99+ $50.46
199+ $49.79
249+ $49.11
499+ $48.44
999+ $47.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
219.6mm
Pitch Diameter:
212mm
Max Bore:
75mm

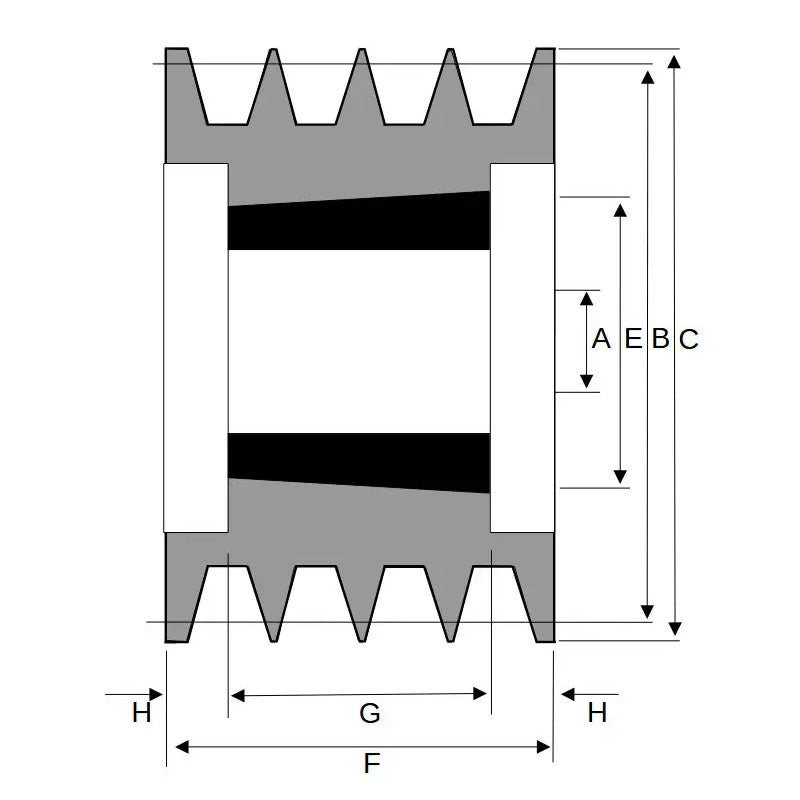

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 212mm
Overall Outer Diameter C 219.6mm
Max Bore A 75mm
Outer Hub Diameter E 104mm
Overall Sheave Depth F 82mm
Bush Seat Length G 51mm
Inner Recess Diameter D 169mm
Inner Recess Length H 15.5mm
