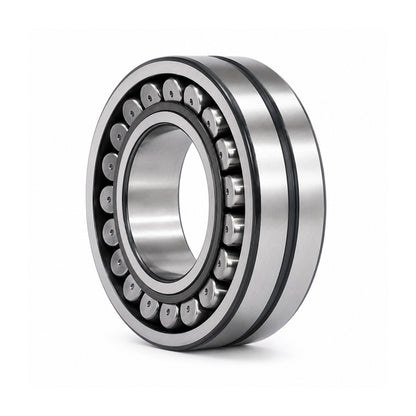

FAG 21310E1K X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm

Name: FAG 21310E1K X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm
Brand: FAG
SKU: 21310-E1-Ku-FAG
Price: 172.96 USD
Availability: InStock

$172.96 ex VAT

Sale Sold out

In stock

Price Break

3+ $115.85

4+ $109.34

9+ $108.04

19+ $106.74

29+ $105.44

39+ $104.14

49+ $97.63

59+ $96.33

249+ $95.02

499+ $93.72

999+ $91.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 110mm
Width:: 27mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	45mm
d	50mm
D	110mm
B	27mm
r min	2mm
D1	89.8mm
d2	67.3mm
ds	3.2mm
ns	4.8mm
a	3mm
b	7mm
Thread d2G	M55X2
l	35mm
da min	61mm
Da max	99mm
ra max	2mm
Dynamic load Cr	129000 N
Static load C0r	130000 N
e	0.23
Y1	2.92
Y2	4.35
Y0	2.86
Fatigue load limit Cur	17300 N
Limiting speed nG	8500 rpm
Reference speed nB	5400 rpm
Bearing weight	1.28 kg
Withdrawal sleeve weight	0.138 kg
