SKU: 215-SKF

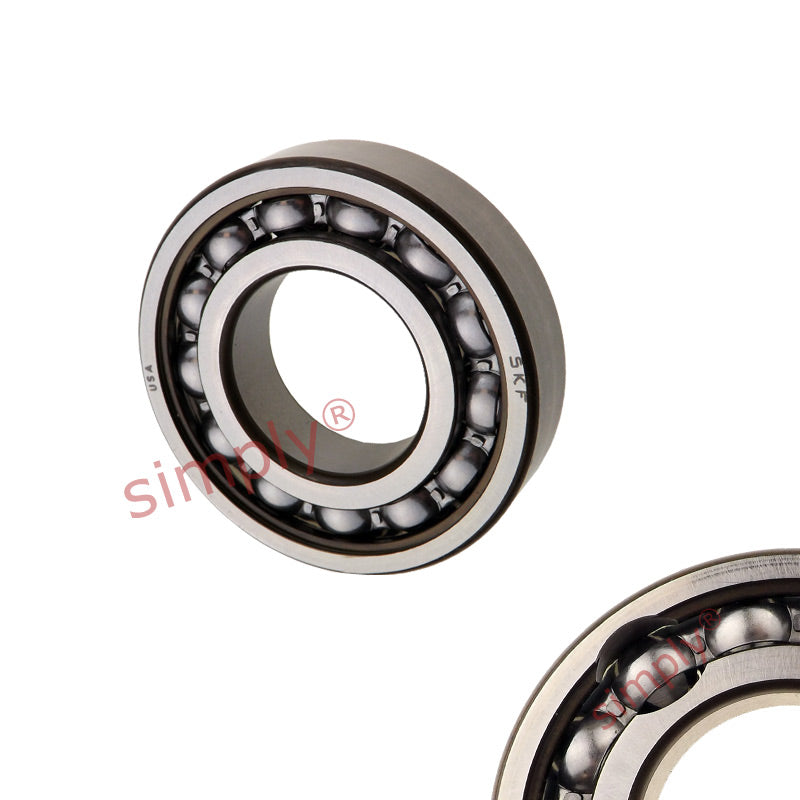

SKF 215 Open Type Filling Slot Ball Bearing 75x130x25mm
SKF 215 Open Type Filling Slot Ball Bearing 75x130x25mm
Regular price
$165.72
ex VAT
Regular price
Sale price
$165.72
ex VAT
In stock
Price Break
10+
$111.01
19+
$104.77
29+
$103.52
39+
$102.27
49+
$101.03
74+
$99.78
99+
$93.54
199+
$92.30
249+
$91.05
499+
$89.80
999+
$87.31
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 72.1 kN |
| Static load Co | 72 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.25 kg |
| d1 | 92.1mm |
| D2 | 117mm |
| r1r2 min | 1.5mm |
| da min | 83mm |
| Da max | 122mm |
| ra max | 1.5mm |
