SKU: 2205K-2RS-EU

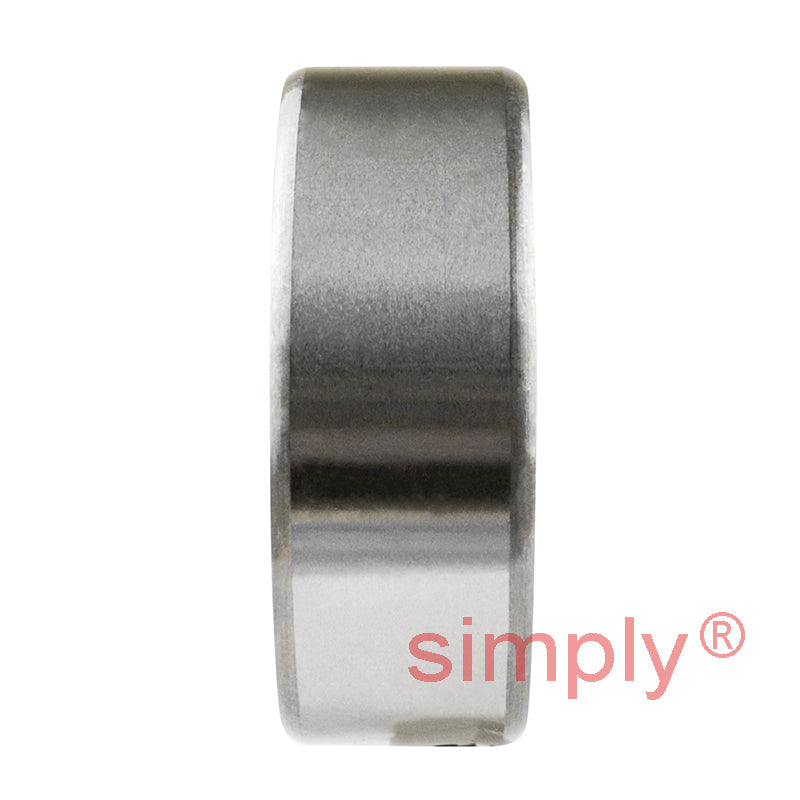

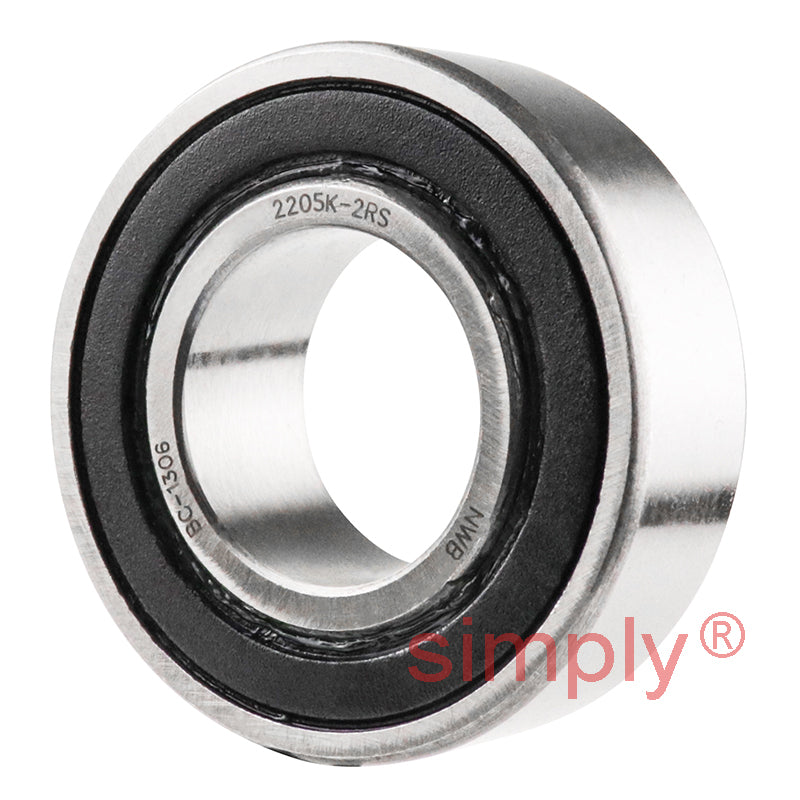

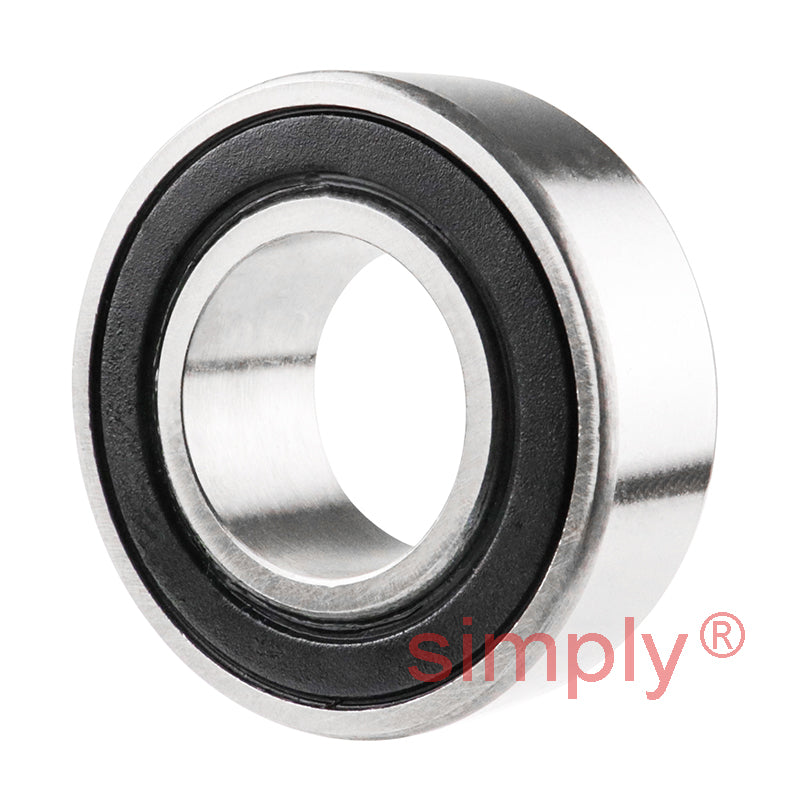

2205K2RS Budget Rubber Sealed Self Aligning Ball Bearing with Taper Bore 25x52x18mm

Name: 2205K2RS Budget Rubber Sealed Self Aligning Ball Bearing with Taper Bore 25x52x18mm
Brand: Gen
SKU: 2205K-2RS-EU
Price: 23.31 USD
Availability: InStock

$23.31 ex VAT

Sale Sold out

Equivalent to: 2205EK2RS

Low stock

Price Break

10+ $15.61

19+ $14.74

29+ $14.56

39+ $14.39

49+ $14.21

74+ $14.03

99+ $13.16

199+ $12.98

249+ $12.81

499+ $12.63

999+ $12.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment
Benefits: Tolerates misalignment, cool running, self centering

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 18mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	25mm
D	52mm
B	18mm
D1	46.3mm
d2	31mm
r1r2	1mm
da min	30.6mm
da max	31mm
Da max	46.4mm
ra max	1mm
---	Calculation Data
C	13.3kN
Co	4kN
Pu	0.21kN
limit	9000rpm
e	0.28
Y1	2.2
Y2	3.5
Y0	2.5
---	Weights
mass	0.16kg
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H305C+sleeve>H305C</a>
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H305E+sleeve>H305E</a>
