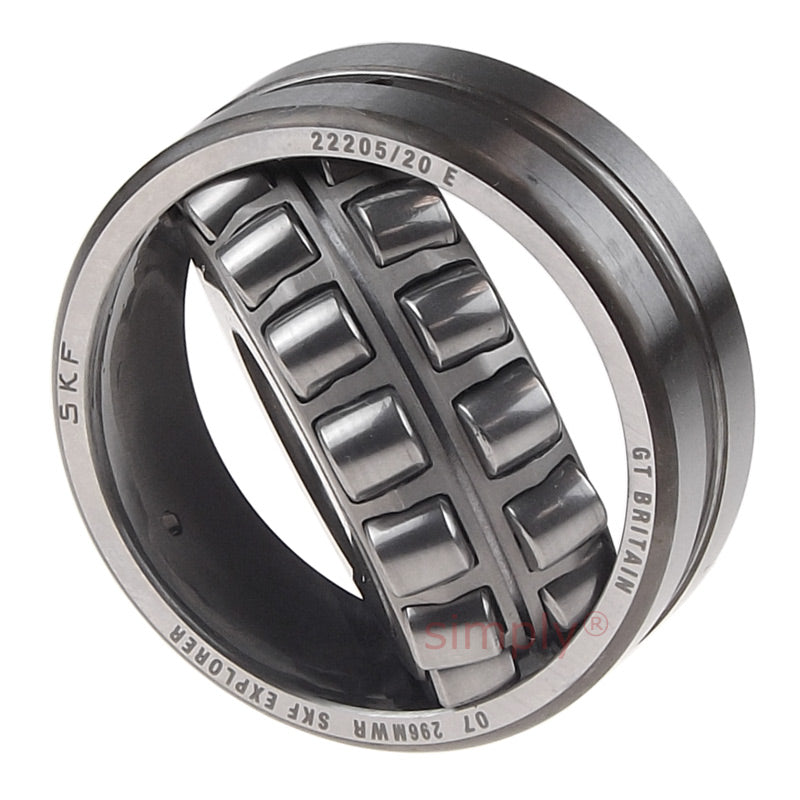

• SKF 2220520E Spherical Roller Bearing with Cylindrical Bore 20x52x18mm
1 1

SKU: 22205/20E-SKF

SKF 2220520E Spherical Roller Bearing with Cylindrical Bore 20x52x18mm

SKF 2220520E Spherical Roller Bearing with Cylindrical Bore 20x52x18mm
$86.79 ex VAT
$86.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.14
4+ $54.87
9+ $54.22
19+ $53.57
29+ $52.91
39+ $52.26
49+ $48.99
59+ $48.34
249+ $47.69
499+ $47.03
999+ $45.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
18mm
Clearance:
* Standard
Technical
--- Dimensions
d 20mm
D 52mm
B 18mm
D1 44.2mm
d2 31.2mm
r1r2 min 1mm
b 3.7mm
K 2mm
da min 25.6mm
Da max 46.4mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 49 kN
Static load Co 44 kN
Fatigue load limit Pu 4.75 kN
Reference speed 13000 rpm
Limiting speed 17000 rpm
Weight 0.28 kg
--- Factors
Calculation factor e 0.35
Calculation factor Y1 1.9
Calculation factor Y2 2.9
Calculation factor Y0 1.8
