• SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm
  • SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm
  • SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm
1 3

SKU: 22208E/C3-SKF

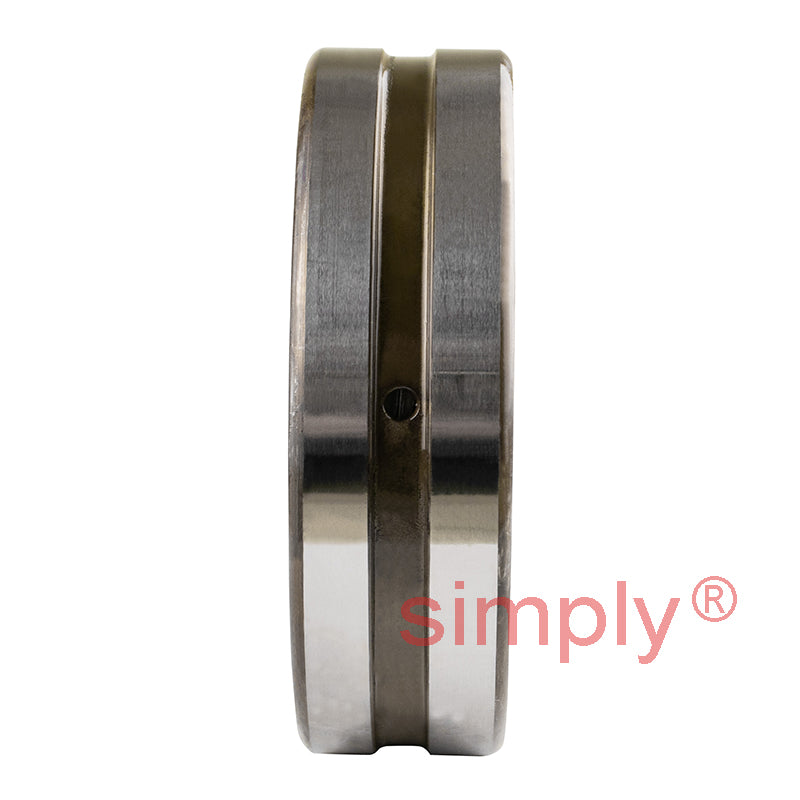

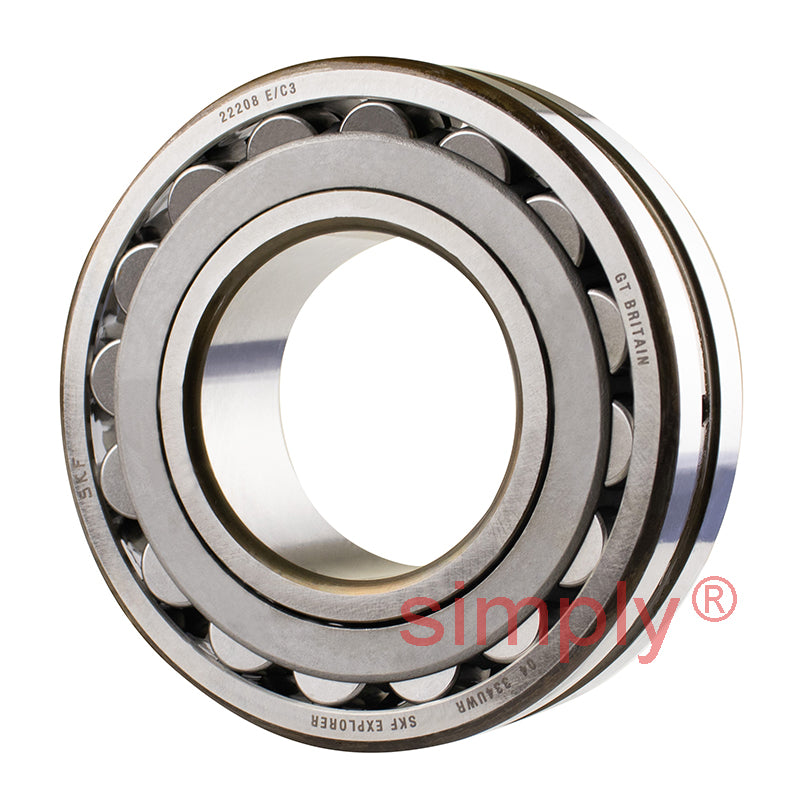

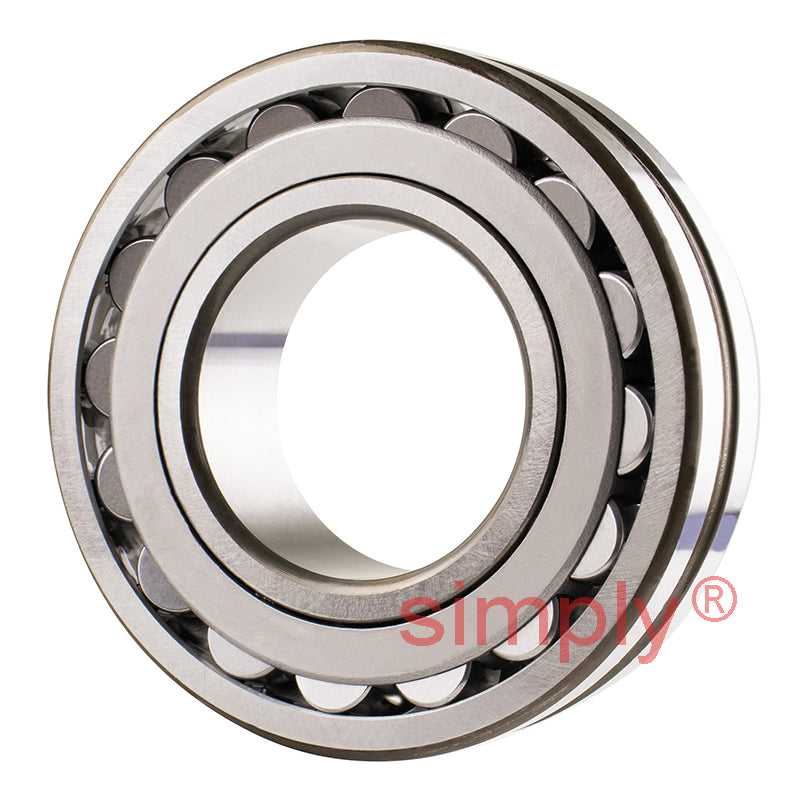

SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm

SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm
$81.64 ex VAT
$81.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.68
4+ $51.61
9+ $51.00
19+ $50.38
29+ $49.77
39+ $49.15
49+ $46.08
59+ $45.47
249+ $44.85
499+ $44.24
999+ $43.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
23mm
Clearance:
C3
Technical
--- Dimensions
d 40mm
D 80mm
B 23mm
D1 69.4mm
d2 49.1mm
r1r2 min 1.1mm
b 5.5mm
K 3mm
da min 47mm
Da max 73mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 96.5 kN
Static load Co 90 kN
Fatigue load limit Pu 9.8 kN
Reference speed 8000 rpm
Limiting speed 11000 rpm
Weight 0.53 kg
--- Factors
Calculation factor e 0.28
Calculation factor Y1 2.4
Calculation factor Y2 3.6
Calculation factor Y0 2.5
