SKU: 22211EAKW33ZZC3-SNR

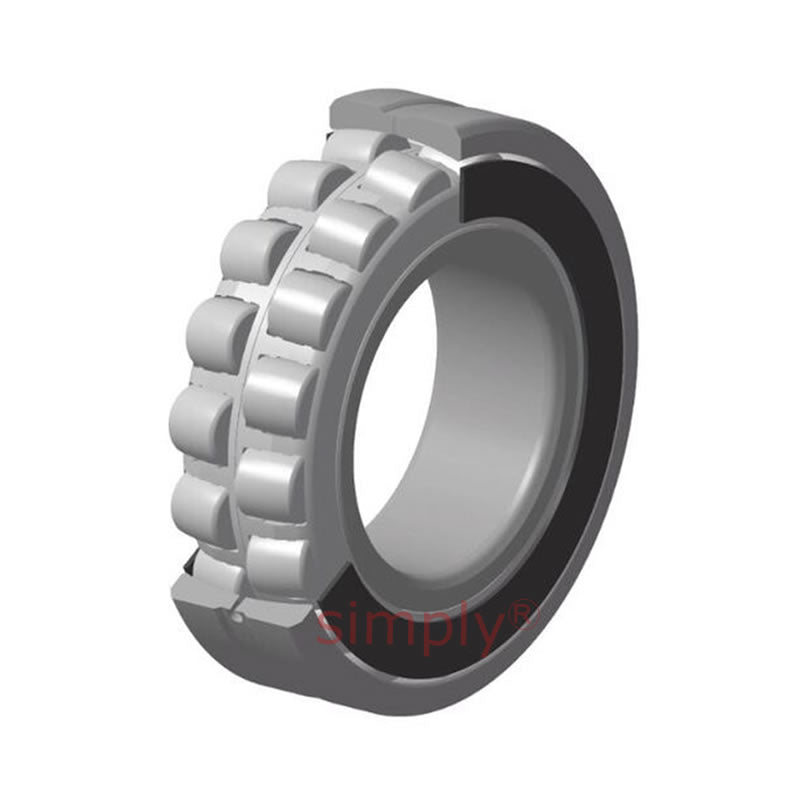

SNR 22211EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 55x100x25mm Allow 1 - 2 Days

SNR 22211EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 55x100x25mm Allow 1 - 2 Days
Regular price $154.98 ex VAT
Regular price Sale price $154.98 ex VAT
Sale Sold out

Equivalent to: 22211KZZC3

In stock

Price Break
3+ $103.81
5+ $97.98
9+ $96.81
19+ $95.64
49+ $94.48
74+ $93.31
99+ $87.48
199+ $86.31
249+ $85.15
499+ $83.98
999+ $81.65
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 55mm
D 100mm
B 25mm
rs 1.5mm
D1 89.7mm
d2 66mm
b 6.4mm
k 3mm
--- Abutment dimensions
da min 64mm
Da Max 91mm
ra max 1.5mm
Dynamic load Cr 155kN
Static load Cor 148kN
Fatigue load Cu 17.9kn
--- Calculation factors
e 0.23
Y1 2.95
Y2 4.39
YO 2.89
--- Speeds and other information
Reference speed 6100rpm
Limiting speed 8200rpm
Internal clearance min 75μm
Internal clearance max 95μm
Initial grease addition mm<sup>3</sup> 8511
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.83kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H311+sleeve>H311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS311+sleeve>HS311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA311+sleeve>HA311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE311B+sleeve>HE311B</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX311+sleeve>AHX311</a>
