SKU: 22215EAW33ZZC3-SNR

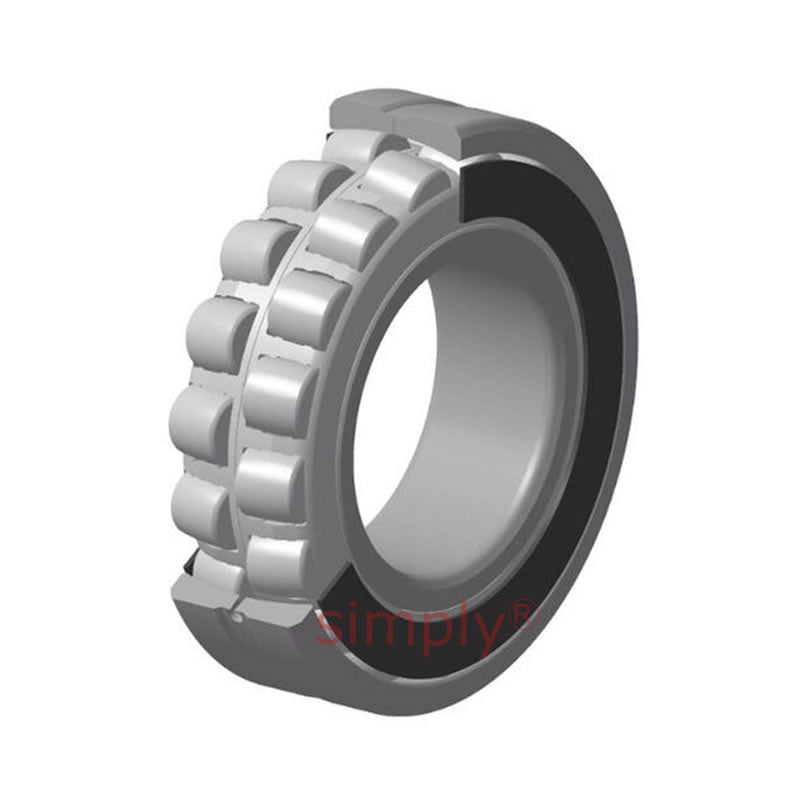

SNR 22215EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 75x130x31mm Allow 1 - 2 Days

SNR 22215EAW33ZZC3 Metal Shielded Spherical Roller Bearing with Cylindrical Bore 75x130x31mm Allow 1 - 2 Days
Regular price $263.45 ex VAT
Regular price Sale price $263.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $176.47
5+ $166.56
9+ $164.57
19+ $162.59
49+ $160.61
74+ $158.62
99+ $148.71
199+ $146.73
249+ $144.74
499+ $142.76
999+ $138.80
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 75mm
D 130mm
B 31mm
rs 1.5mm
D1 117.8mm
d2 88.4mm
b 7.4mm
k 3.5mm
--- Abutment dimensions
da min 84mm
Da Max 121mm
ra max 1.5mm
Dynamic load Cr 244kN
Static load Cor 249kN
Fatigue load Cu 30.2kn
--- Calculation factors
e 0.22
Y1 3.13
Y2 4.67
YO 3.06
--- Speeds and other information
Reference speed 4600rpm
Limiting speed 6200rpm
Internal clearance min 80μm
Internal clearance max 110μm
Initial grease addition mm<sup>3</sup> 17458
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 1.72kg
