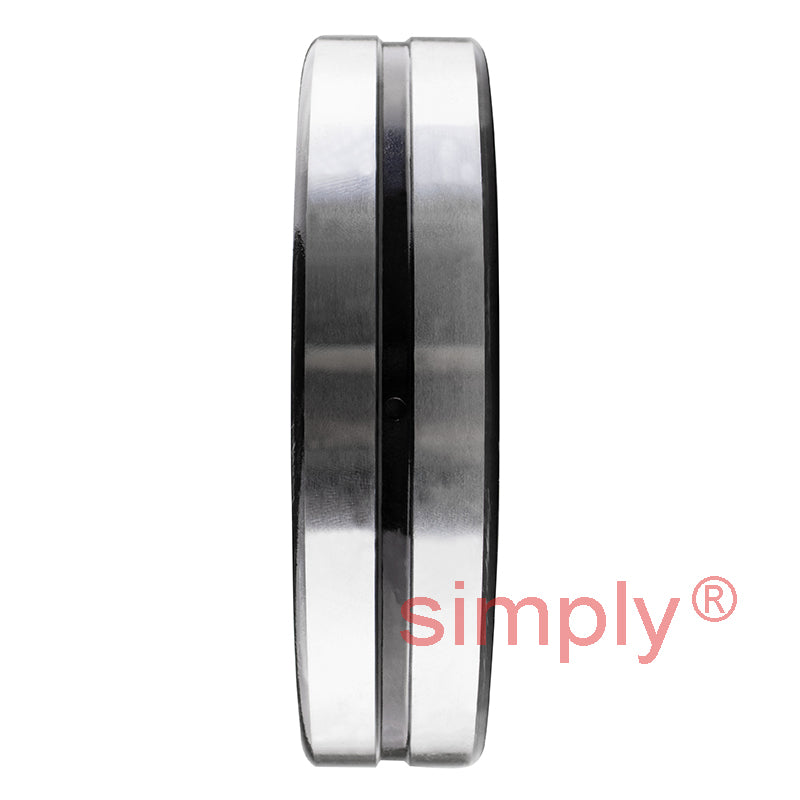

• SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
  • SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
  • SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
1 3

SKU: 22216E-SKF

SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm

SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
$237.12 ex VAT
$237.12 ex VAT
Sale Sold out

In stock

Price Break
3+ $158.83
4+ $149.91
9+ $148.12
19+ $146.34
29+ $144.55
39+ $142.77
49+ $133.85
59+ $132.06
249+ $130.28
499+ $128.49
999+ $124.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
140mm
Width:
33mm
Clearance:
* Standard
Technical
--- Dimensions
d 80mm
D 140mm
B 33mm
D1 124mm
d2 94.7mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 91mm
Da max 129mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 236 kN
Static load Co 270 kN
Fatigue load limit Pu 29 kN
Reference speed 4300 rpm
Limiting speed 6000 rpm
Weight 2.1 kg
--- Factors
Calculation factor e 0.22
Calculation factor Y1 3
Calculation factor Y2 4.6
Calculation factor Y0 2.8
