SKU: 22220-E1-K+H320-FAG
FAG 22220E1K X-life Spherical Roller Bearing with H320 Adapter Sleeve 90x180x46mm
FAG 22220E1K X-life Spherical Roller Bearing with H320 Adapter Sleeve 90x180x46mm
Regular price
$371.69
ex VAT
Regular price
Sale price
$371.69
ex VAT
In stock
Price Break
3+
$279.74
4+
$279.74
9+
$279.74
19+
$279.74
29+
$279.74
39+
$279.74
49+
$279.74
59+
$279.74
249+
$279.74
499+
$279.74
999+
$279.74
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 180mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard

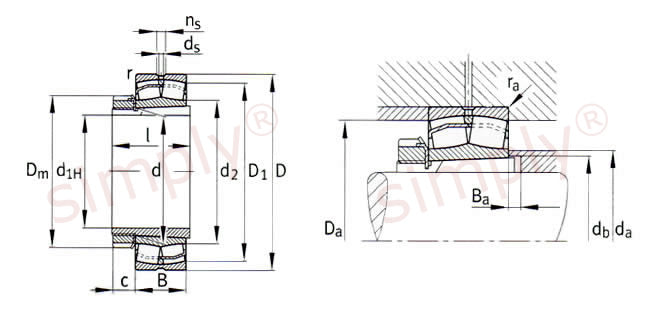

Technical
Technical
| d1H | 90mm |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 46mm |
| r min | 2.1mm |
| D1 | 161.4mm |
| d2 | 119mm |
| ds | 4.8mm |
| ns | 9.5mm |
| Dm | 130mm |
| l | 71mm |
| c | 20mm |
| da max | 118mm |
| Da max | 168mm |
| db min | 108mm |
| Ba min | 8mm |
| ra max | 2.1mm |
| Dynamic load Cr | 430000 N |
| Static load C0r | 475000 N |
| e | 0.24 |
| Y1 | 2.84 |
| Y2 | 4.23 |
| Y0 | 2.78 |
| Fatigue load limit Cur | 52000 N |
| Limiting speed nG | 4300 rpm |
| Reference speed nB | 3150 rpm |
| Bearing weight | 4.91 kg |
| Adapter sleeve weight | 1.69 kg |
