SKU: 22224-E1-Ku-FAG

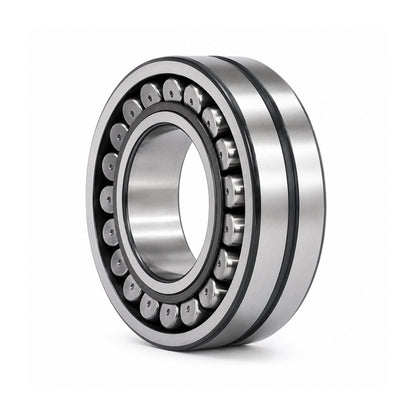

FAG 22224E1K X-life Spherical Roller Bearing with AHX3124 Withdrawal Sleeve 115x215x58mm

Name: FAG 22224E1K X-life Spherical Roller Bearing with AHX3124 Withdrawal Sleeve 115x215x58mm
Brand: FAG
SKU: 22224-E1-Ku-FAG
Price: 767.08 USD
Availability: InStock

$767.08 ex VAT

Sale Sold out

In stock

Price Break

3+ $513.81

4+ $484.95

9+ $479.18

19+ $473.40

29+ $467.63

39+ $461.86

49+ $432.99

59+ $427.22

249+ $421.44

499+ $415.67

999+ $404.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 115mm
Outside Diameter:: 215mm
Width:: 58mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	115mm
d	120mm
D	215mm
B	58mm
r min	2.1mm
D1	192mm
d2	141.8mm
ds	6.3mm
ns	12.2mm
a	4mm
b	12mm
Thread d2G	M130X2
l	75mm
da min	132mm
Da max	203mm
ra max	2.1mm
Dynamic load Cr	640000 N
Static load C0r	740000 N
e	0.25
Y1	2.71
Y2	4.04
Y0	2.65
Fatigue load limit Cur	71000 N
Limiting speed nG	3400 rpm
Reference speed nB	2700 rpm
Bearing weight	8.84 kg
Withdrawal sleeve weight	0.954 kg
