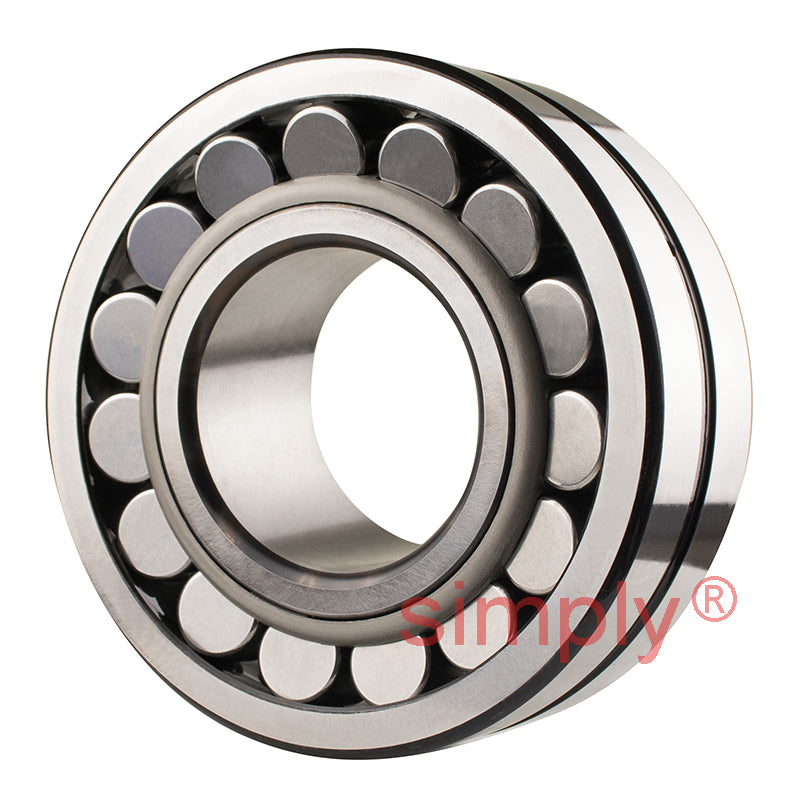

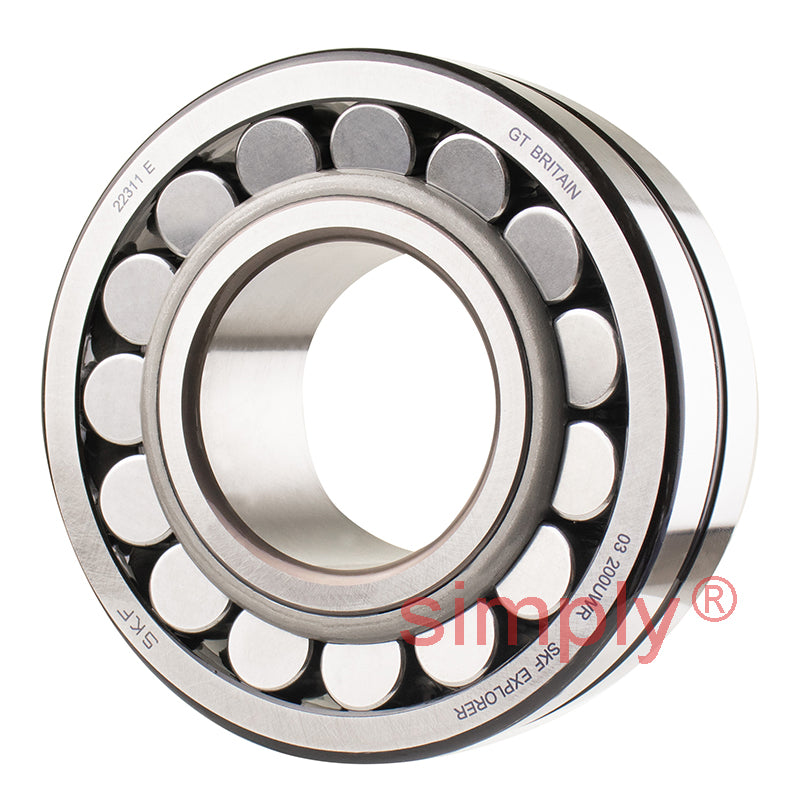

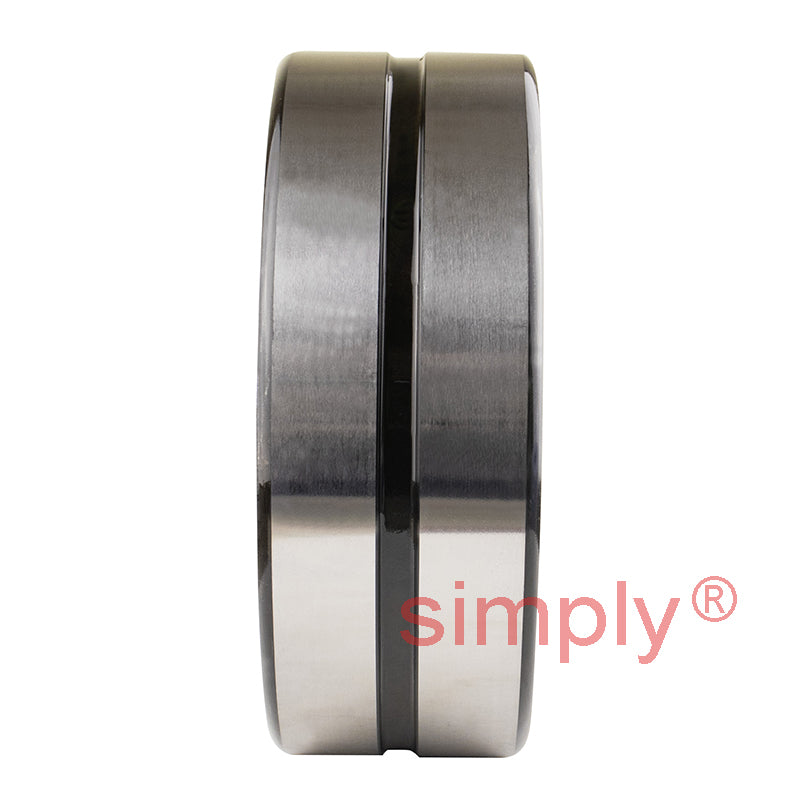

• SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
  • SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
  • SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
1 3

SKU: 22311E-SKF

SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm

SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
$198.18 ex VAT
$198.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $132.75
4+ $125.29
9+ $123.80
19+ $122.31
29+ $120.82
39+ $119.32
49+ $111.87
59+ $110.37
249+ $108.88
499+ $107.39
999+ $104.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
43mm
Clearance:
* Standard
Technical
--- Dimensions
d 55mm
D 120mm
B 43mm
D1 102mm
d2 70.1mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 66mm
Da max 109mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 270 kN
Static load Co 280 kN
Fatigue load limit Pu 30 kN
Reference speed 4300 rpm
Limiting speed 5600 rpm
Weight 2.45 kg
--- Factors
Calculation factor e 0.35
Calculation factor Y1 1.9
Calculation factor Y2 2.9
Calculation factor Y0 1.8
