SKU: 22317-E1-Ku-FAG

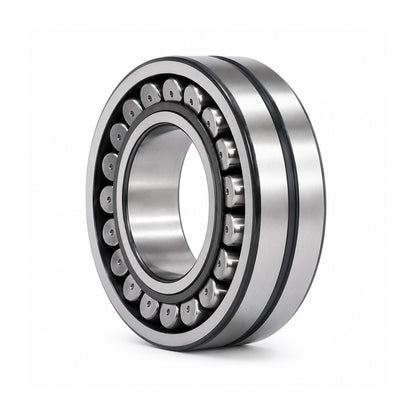

FAG 22317E1K X-life Spherical Roller Bearing with AHX2317 Withdrawal Sleeve 80x180x60mm

Name: FAG 22317E1K X-life Spherical Roller Bearing with AHX2317 Withdrawal Sleeve 80x180x60mm
Brand: FAG
SKU: 22317-E1-Ku-FAG
Price: 470.15 USD
Availability: InStock

$470.15 ex VAT

Sale Sold out

In stock

Price Break

3+ $314.92

4+ $297.23

9+ $293.69

19+ $290.15

29+ $286.61

39+ $283.07

49+ $265.38

59+ $261.84

249+ $258.30

499+ $254.76

999+ $247.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 180mm
Width:: 60mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	80mm
d	85mm
D	180mm
B	60mm
r min	3mm
D1	154.2mm
d2	104.4mm
ds	4.8mm
ns	9.5mm
a	4mm
b	13mm
Thread d2G	M95X2
l	74mm
da min	99mm
Da max	166mm
ra max	2.5mm
Dynamic load Cr	540000 N
Static load C0r	560000 N
e	0.33
Y1	2.04
Y2	3.04
Y0	2
Fatigue load limit Cur	50000 N
Limiting speed nG	4000 rpm
Reference speed nB	3200 rpm
Bearing weight	7.06 kg
Withdrawal sleeve weight	0.7 kg
