SKU: 22320-E1-K-C3u-FAG

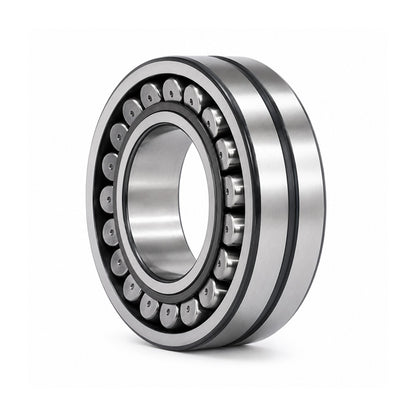

FAG 22320E1KC3 X-life Spherical Roller Bearing with AHX2320 Withdrawal Sleeve 95x215x73mm

Name: FAG 22320E1KC3 X-life Spherical Roller Bearing with AHX2320 Withdrawal Sleeve 95x215x73mm
Brand: FAG
SKU: 22320-E1-K-C3u-FAG
Price: 712.90 USD
Availability: InStock

$712.90 ex VAT

Sale Sold out

In stock

Price Break

3+ $477.52

4+ $450.69

9+ $445.33

19+ $439.96

29+ $434.60

39+ $429.23

49+ $402.41

59+ $397.04

249+ $391.67

499+ $386.31

999+ $375.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 95mm
Outside Diameter:: 215mm
Width:: 73mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	95mm
d	100mm
D	215mm
B	73mm
r min	3mm
D1	184.7mm
d2	130.2mm
ds	6.3mm
ns	12.2mm
a	4mm
b	16mm
Thread d2G	M110X2
l	90mm
da min	114mm
Da max	201mm
ra max	2.5mm
Dynamic load Cr	810000 N
Static load C0r	920000 N
e	0.33
Y1	2.03
Y2	3.02
Y0	1.98
Fatigue load limit Cur	75000 N
Limiting speed nG	3000 rpm
Reference speed nB	2380 rpm
Bearing weight	13.1 kg
Withdrawal sleeve weight	1.01 kg
