SKU: 22324-E1-K+AHX2324G-FAG

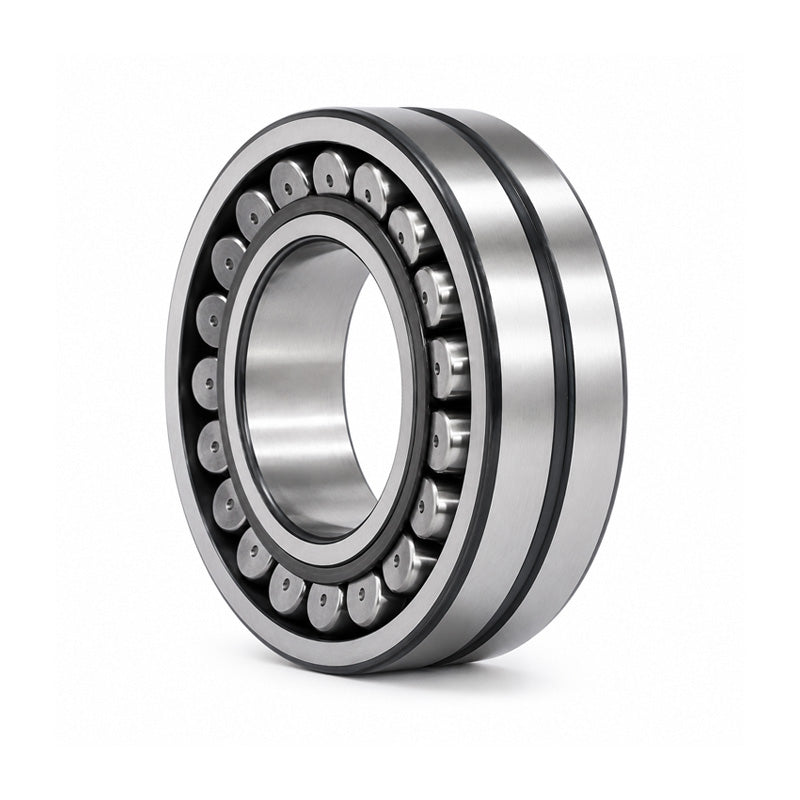

FAG 22324E1K X-life Spherical Roller Bearing with AHX2324G Withdrawal Sleeve 115x260x86mm
FAG 22324E1K X-life Spherical Roller Bearing with AHX2324G Withdrawal Sleeve 115x260x86mm
Out of stock
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 260mm
- Width:
- 86mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 115mm |
|---|---|
| d | 120mm |
| D | 260mm |
| B | 86mm |
| r min | 3mm |
| D1 | 222.4mm |
| d2 | 150.7mm |
| ds | 8mm |
| ns | 15mm |
| a | 4mm |
| b | 17mm |
| Thread d2G | M130X2 |
| l | 105mm |
| da min | 134mm |
| Da max | 246mm |
| ra max | 2.5mm |
| Dynamic load Cr | 1080000 N |
| Static load C0r | 1170000 N |
| e | 0.33 |
| Y1 | 2.06 |
| Y2 | 3.06 |
| Y0 | 2.01 |
| Fatigue load limit Cur | 103000 N |
| Limiting speed nG | 2600 rpm |
| Reference speed nB | 2000 rpm |
| Bearing weight | 22.1 kg |
| Withdrawal sleeve weight | 1.5 kg |
