• 224X1SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
  • 224X1SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
1 2

SKU: 224SPA1-MB

224X1SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)

224X1SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
$37.03 ex VAT
$37.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.80
5+ $23.41
9+ $23.13
19+ $22.85
49+ $22.57
74+ $22.29
99+ $20.90
199+ $20.62
249+ $20.34
499+ $20.06
999+ $19.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
1
Outside Diameter:
230.2mm
Pitch Diameter:
224mm
Max Bore:
50mm

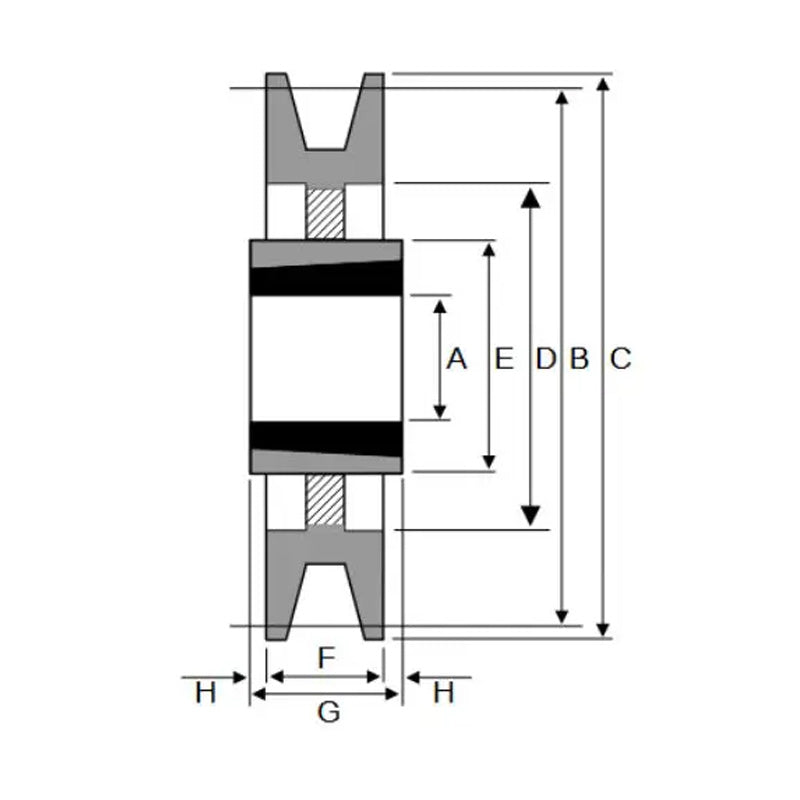

Technical
Number of Grooves 1
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 230.2mm
Max Bore A 50mm
Outer Hub Diameter E 112mm
Overall Sheave Depth F 20mm
Bush Seat Length G 32mm
Inner Recess Diameter D 189mm
Inner Recess Length H 0mm
