SKU: 224SPA5-MB

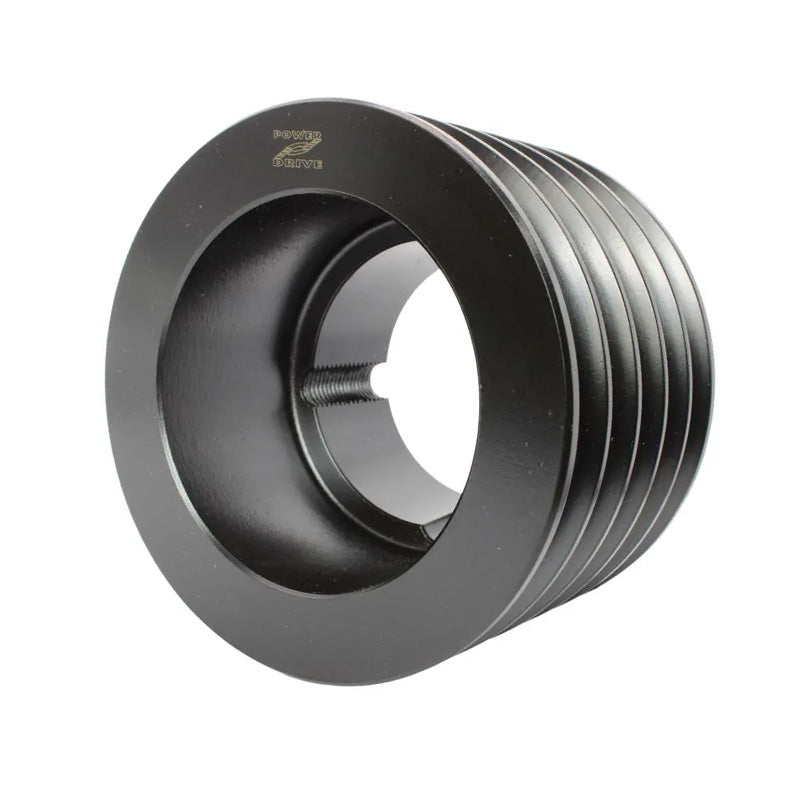

224X5SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

224X5SPA 224mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$79.83 ex VAT
$79.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $53.47
5+ $50.47
9+ $49.87
19+ $49.27
49+ $48.67
74+ $48.07
99+ $45.06
199+ $44.46
249+ $43.86
499+ $43.26
999+ $42.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
230.2mm
Pitch Diameter:
224mm
Max Bore:
75mm

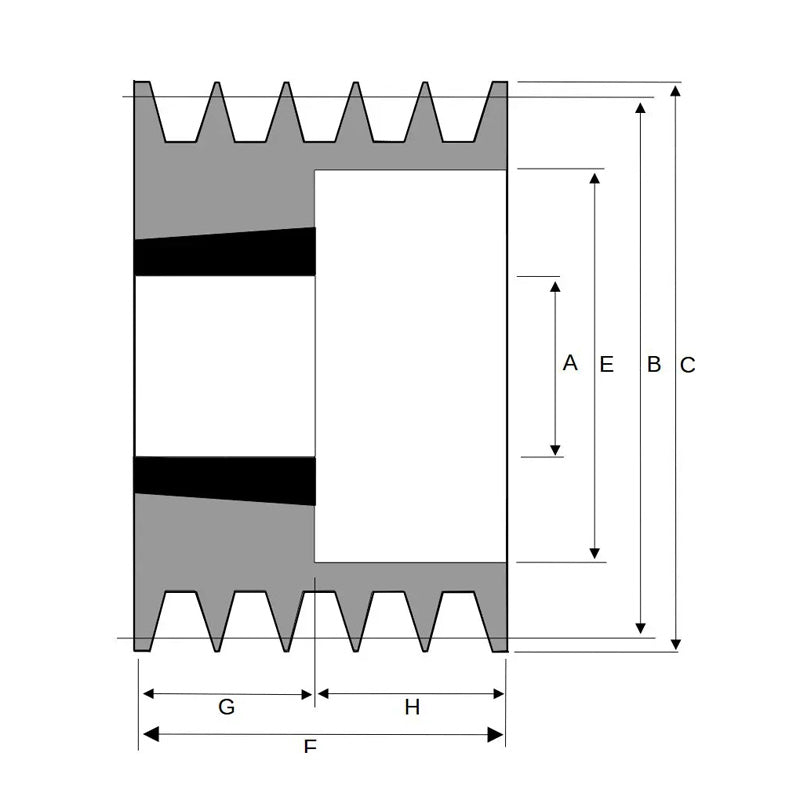

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 230.2mm
Max Bore A 75mm
Outer Hub Diameter E mm
Overall Sheave Depth F 80mm
Bush Seat Length G 51mm
Inner Recess Diameter D 189mm
