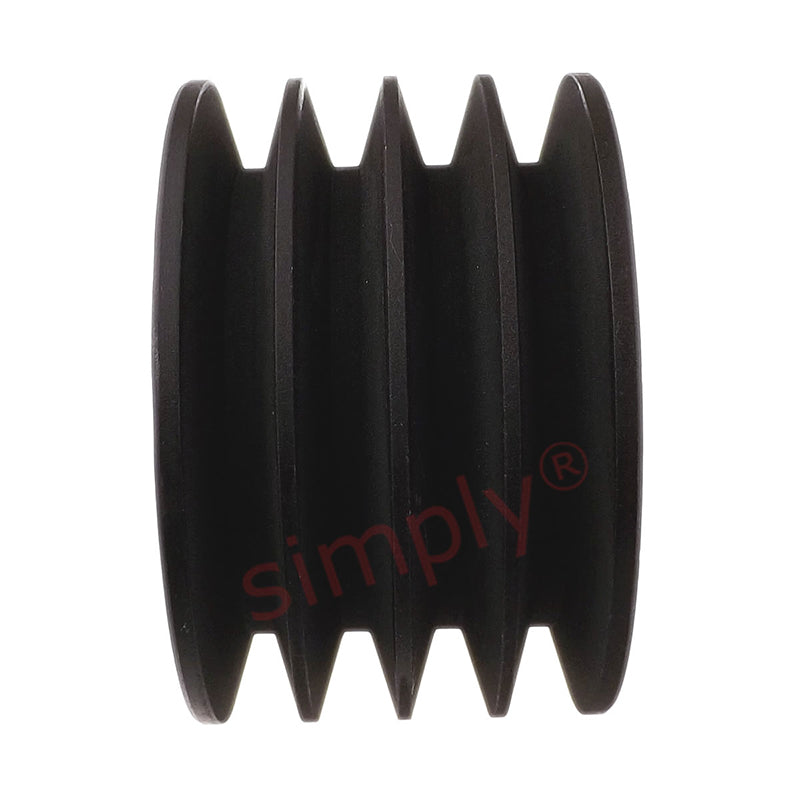

• 224X4SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 224SPC4-MB

224X4SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

224X4SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$158.08 ex VAT
$158.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $105.88
5+ $99.93
9+ $98.74
19+ $97.55
49+ $96.36
74+ $95.17
99+ $89.23
199+ $88.04
249+ $86.85
499+ $85.66
999+ $83.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
234.2mm
Pitch Diameter:
224mm
Max Bore:
90mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 234.2mm
Max Bore A 90mm
Overall Sheave Depth F 111mm
Bush Seat Length G 65mm
Inner Recess Diameter D 167mm
Inner Recess Length H 23mm
