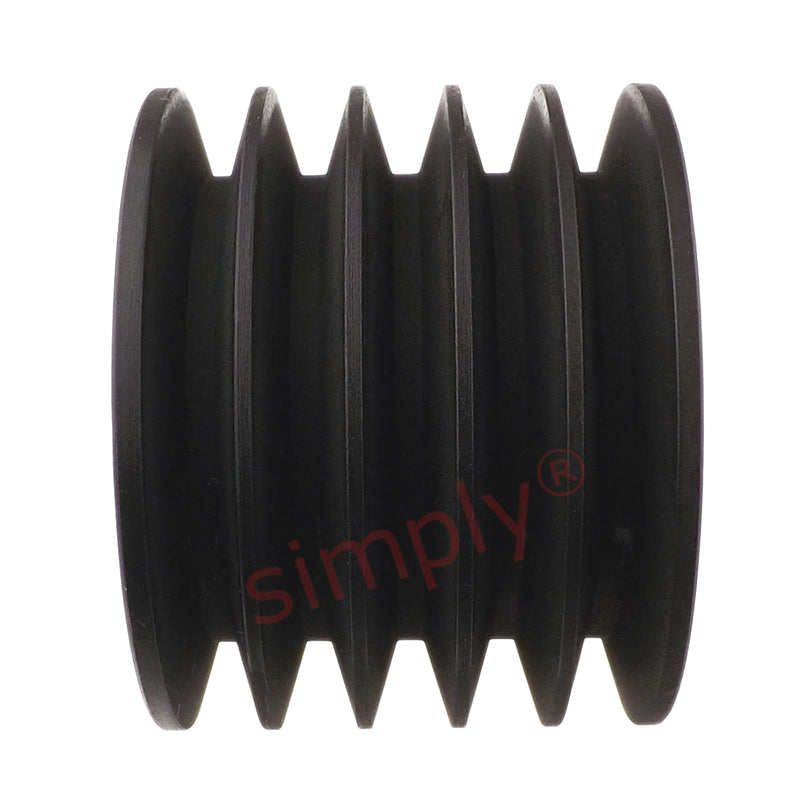

• 224X5SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 224SPC5-MB

224X5SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

224X5SPC 224mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$170.02 ex VAT
$170.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $113.89
5+ $107.49
9+ $106.21
19+ $104.93
49+ $103.65
74+ $102.37
99+ $95.97
199+ $94.69
249+ $93.41
499+ $92.13
999+ $89.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
234.2mm
Pitch Diameter:
224mm
Max Bore:
90mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 234.2mm
Max Bore A 90mm
Overall Sheave Depth F 136mm
Bush Seat Length G 65mm
Inner Recess Diameter D 167mm
Inner Recess Length H 35.5mm
