• 224X2SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 1

SKU: 224SPZ2-MB

224X2SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

224X2SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$40.10 ex VAT
$40.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.86
5+ $25.35
9+ $25.05
19+ $24.75
49+ $24.45
74+ $24.14
99+ $22.64
199+ $22.33
249+ $22.03
499+ $21.73
999+ $21.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
228.6mm
Pitch Diameter:
224mm
Max Bore:
50mm

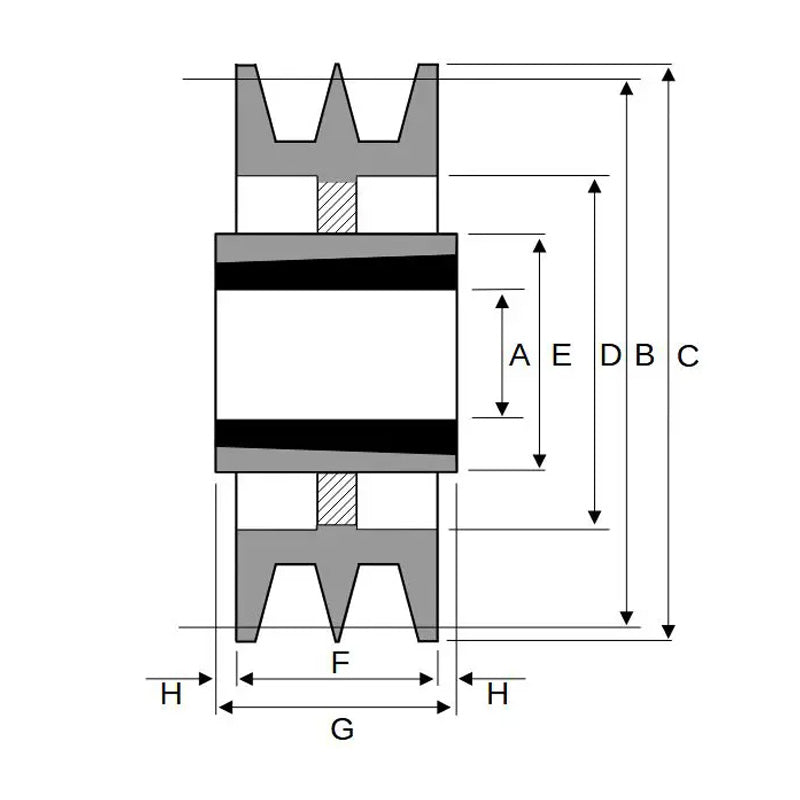

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 228.6mm
Max Bore A 50mm
Outer Hub Diameter E 112mm
Overall Sheave Depth F 28mm
Bush Seat Length G 32mm
Inner Recess Diameter D 195mm
Inner Recess Length H 3mm
