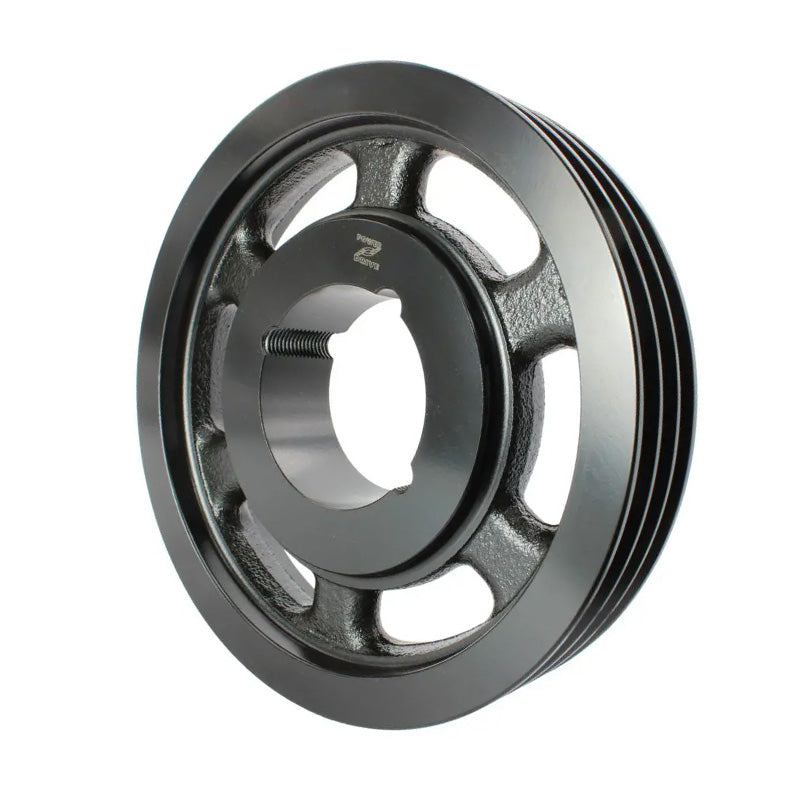

• 224X3SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 1

SKU: 224SPZ3-MB

224X3SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

224X3SPZ 224mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$46.36 ex VAT
$46.36 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.05
5+ $29.31
9+ $28.96
19+ $28.61
49+ $28.26
74+ $27.91
99+ $26.17
199+ $25.82
249+ $25.47
499+ $25.12
999+ $24.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
228.6mm
Pitch Diameter:
224mm
Max Bore:
60mm
Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 224mm
Overall Outer Diameter C 228.6mm
Max Bore A 60mm
Outer Hub Diameter E 112mm
Overall Sheave Depth F 40mm
Bush Seat Length G 32mm
Inner Recess Diameter D 195mm
Inner Recess Length H 4mm
