• 23092RS Budget Rubber Sealed Self Aligning Ball Bearing 45x100x36mm
  • 23092RS Budget Rubber Sealed Self Aligning Ball Bearing 45x100x36mm
  • 23092RS Budget Rubber Sealed Self Aligning Ball Bearing 45x100x36mm
1 3

SKU: 2309-2RS-EU

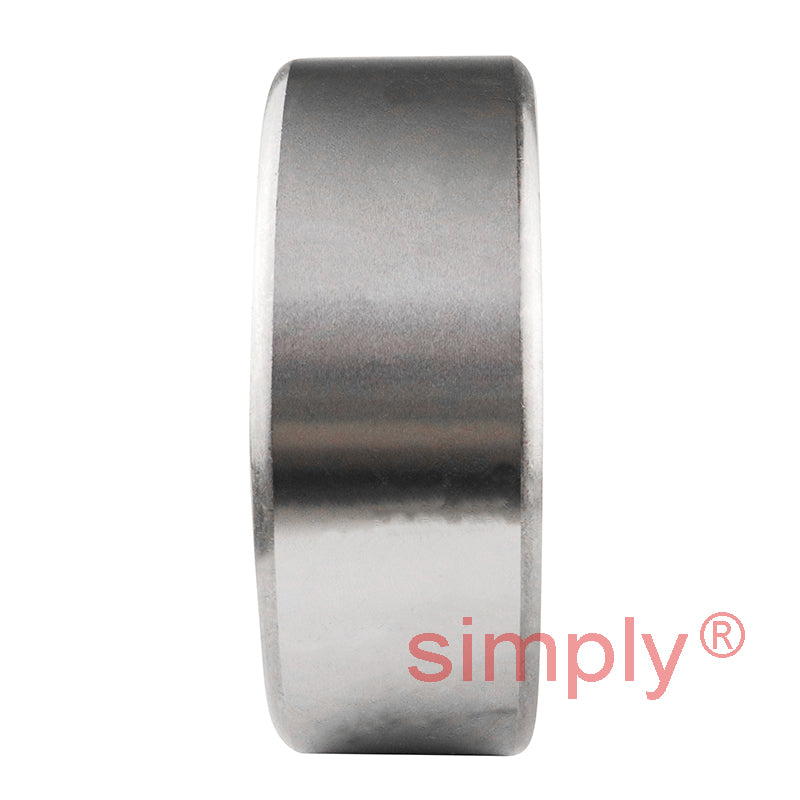

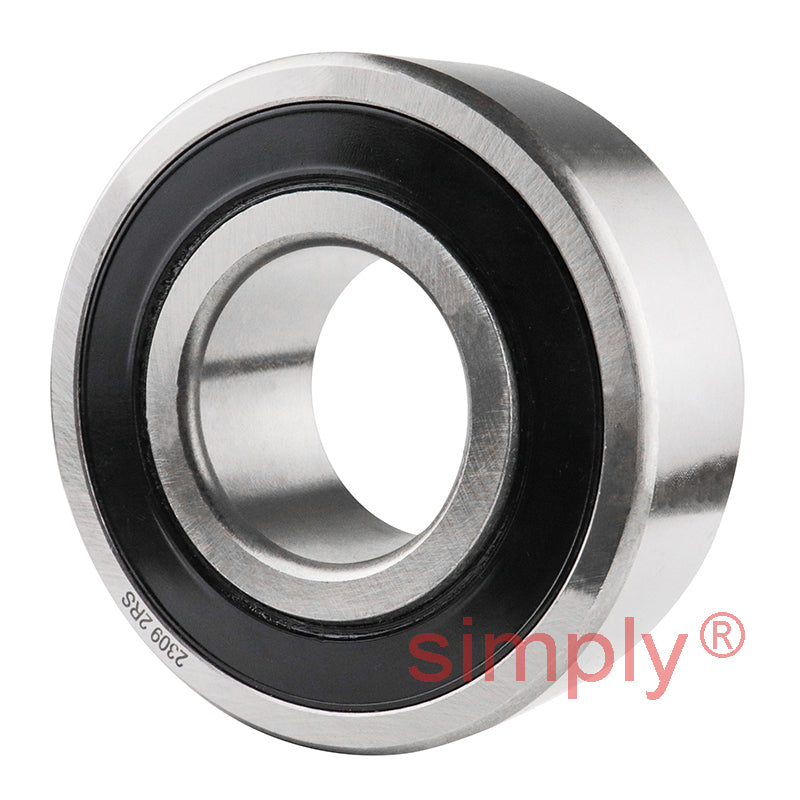

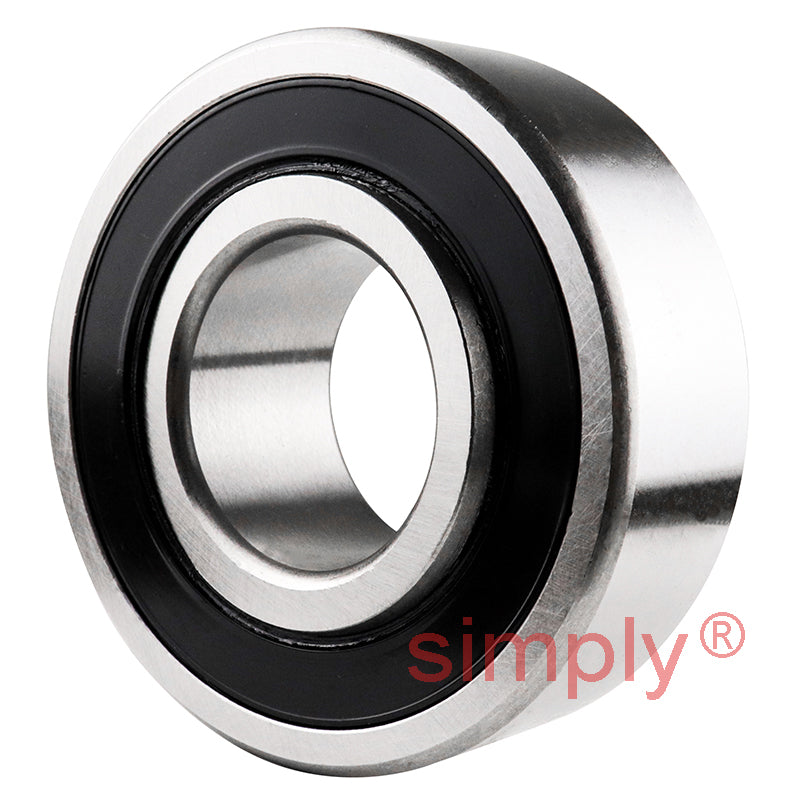

23092RS Budget Rubber Sealed Self Aligning Ball Bearing 45x100x36mm

23092RS Budget Rubber Sealed Self Aligning Ball Bearing 45x100x36mm
$75.07 ex VAT
$75.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.28
19+ $47.46
29+ $46.89
39+ $46.33
49+ $45.76
74+ $45.20
99+ $42.37
199+ $41.81
249+ $41.24
499+ $40.68
999+ $39.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment
Benefits: Tolerates misalignment, cool running, self centering
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
36mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 45mm
D 100mm
B 36mm
D1 90mm
d2 60.9mm
r1r2 1.5mm
da min 54mm
da max 60.5mm
Da max 91mm
ra max 1.5mm
--- Calculation Data
C 39kN
Co 13.4kN
Pu 0.7kN
limit 4500rpm
e 0.23
Y1 2.7
Y2 4.2
Y0 2.8
--- Weights
mass 1.3kg
