SKU: 23100/23256.B-FAG

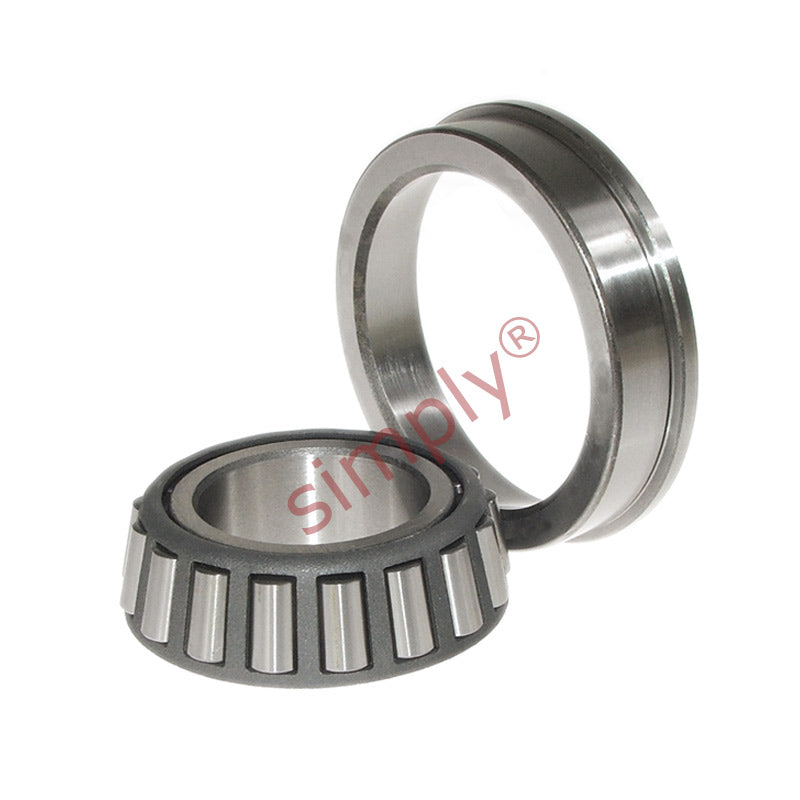

FAG 23100/23256B Imperial Taper Roller Bearing Cup and Cone Set 1x2.5625x0.875 inch Allow 2-3 Days
FAG 23100/23256B Imperial Taper Roller Bearing Cup and Cone Set 1x2.5625x0.875 inch Allow 2-3 Days
Out of stock
Description
Description
|
Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads. Supplied as a two part set consisting of the cone inner part where the rollers and cage are located and the outer cup part. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
- Seals / Shields:
- None
Technical
Technical
| Cup | 23256B |
|---|---|
| Cone | 23100 |
| I/D | 1 inch (25.4mm) |
| O/D | 2.5625 inch (65.09mm) |
| Cone Width | 0.85 inch (21.59mm) |
| Cup Width | 0.63 inch (16.002mm) |
| Bearing Width | 0.875 inch (22.23mm) |
