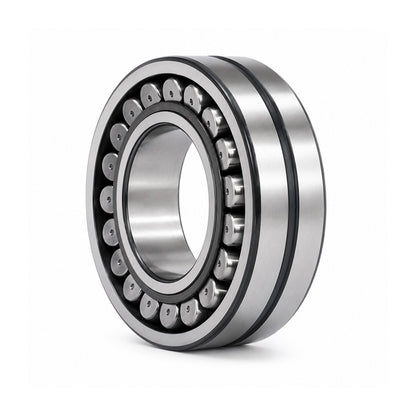

• FAG 23126E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3126 Withdrawal Sleeve 125x210x64mm
  • FAG
1 2

SKU: 23126-E1-K-TVPBu-FAG

FAG 23126E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3126 Withdrawal Sleeve 125x210x64mm

FAG 23126E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3126 Withdrawal Sleeve 125x210x64mm
$804.34 ex VAT
$804.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $538.77
4+ $508.50
9+ $502.45
19+ $496.40
29+ $490.34
39+ $484.29
49+ $454.02
59+ $447.97
249+ $441.91
499+ $435.86
999+ $423.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
125mm
Outside Diameter:
210mm
Width:
64mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d1H 125mm
d 130mm
D 210mm
B 64mm
r min 2mm
D1 187.3mm
d2 146mm
ds 4.8mm
ns 9.5mm
a 4mm
b 12mm
Thread d2G M140X2
l 78mm
da min 141mm
Da max 199mm
ra max 2mm
Dynamic load Cr 680000 N
Static load C0r 890000 N
e 0.28
Y1 2.45
Y2 3.64
Y0 2.39
Fatigue load limit Cur 79000 N
Limiting speed nG 3000 rpm
Reference speed nB 2110 rpm
Bearing weight 7.82 kg
Withdrawal sleeve weight 1.1 kg
