SKU: 23126-E1A-K-Mu-FAG

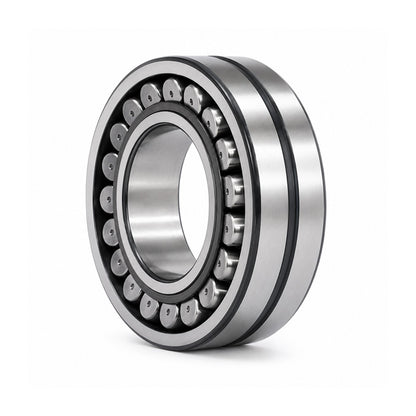

FAG 23126E1AKM X-life Spherical Roller Bearing with AHX3126 Withdrawal Sleeve 125x210x64mm

Name: FAG 23126E1AKM X-life Spherical Roller Bearing with AHX3126 Withdrawal Sleeve 125x210x64mm
Brand: FAG
SKU: 23126-E1A-K-Mu-FAG
Price: 937.08 USD
Availability: InStock

$937.08 ex VAT

Sale Sold out

In stock

Price Break

3+ $627.68

4+ $592.42

9+ $585.37

19+ $578.31

29+ $571.26

39+ $564.21

49+ $528.95

59+ $521.89

249+ $514.84

499+ $507.79

999+ $493.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 125mm
Outside Diameter:: 210mm
Width:: 64mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	125mm
d	130mm
D	210mm
B	64mm
r min	2mm
D1	187.3mm
ds	4.8mm
ns	9.5mm
a	4mm
b	12mm
Thread d2G	M140X2
l	78mm
da min	141mm
Da max	199mm
ra max	2mm
Dynamic load Cr	680000 N
Static load C0r	890000 N
e	0.28
Y1	2.45
Y2	3.64
Y0	2.39
Fatigue load limit Cur	79000 N
Limiting speed nG	3000 rpm
Reference speed nB	2110 rpm
Bearing weight	8.1 kg
Withdrawal sleeve weight	1.1 kg
