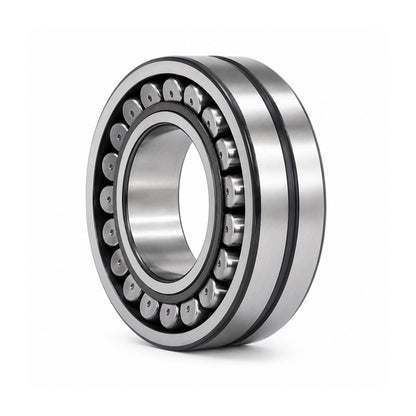

• FAG 23224E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3224A Withdrawal Sleeve 115x215x76mm
  • FAG
1 2

SKU: 23224-E1-K-TVPBu?-FAG

FAG 23224E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3224A Withdrawal Sleeve 115x215x76mm

FAG 23224E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3224A Withdrawal Sleeve 115x215x76mm
$840.33 ex VAT
$840.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $562.79
4+ $531.17
9+ $524.85
19+ $518.53
29+ $512.20
39+ $505.88
49+ $474.26
59+ $467.94
249+ $461.62
499+ $455.29
999+ $442.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
115mm
Outside Diameter:
215mm
Width:
76mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d1H 115mm
d 120mm
D 215mm
B 76mm
r min 2.1mm
D1 185.5mm
d2 139mm
ds 4.8mm
ns 9.5mm
a 4mm
b 13mm
Thread d2G M130X2
l 90mm
da min 132mm
Da max 203mm
ra max 2.1mm
Dynamic load Cr 820000 N
Static load C0r 1020000 N
e 0.33
Y1 2.03
Y2 3.02
Y0 1.98
Fatigue load limit Cur 80000 N
Limiting speed nG 2800 rpm
Reference speed nB 1910 rpm
Bearing weight 11.1 kg
Withdrawal sleeve weight 1.2 kg
