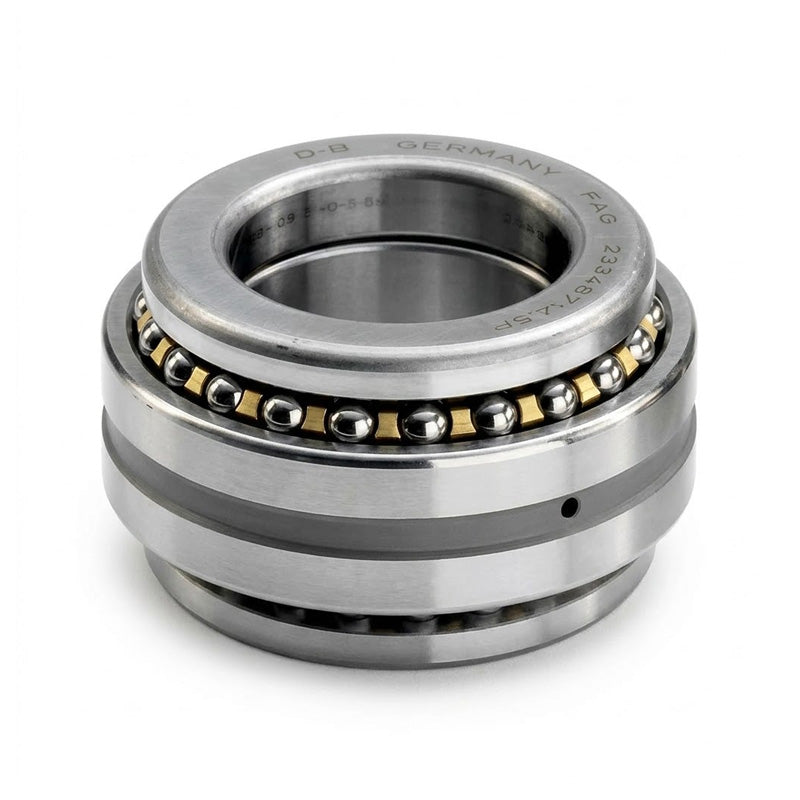

FAG 234406MSP Super Precision Double Axial Angular Contact Spindle Bearing 30x55x32mm

Name: FAG 234406MSP Super Precision Double Axial Angular Contact Spindle Bearing 30x55x32mm
Brand: FAG
SKU: 234406-M-SP-FAG
Price: 566.36 USD
Availability: InStock

$566.36 ex VAT

Sale Sold out

In stock

Price Break

3+ $379.36

5+ $358.05

10+ $353.79

25+ $349.53

49+ $345.26

74+ $341.00

99+ $319.69

199+ $315.43

249+ $311.16

499+ $306.90

999+ $298.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: FAG - High Quality
Inside Diameter:: 30mm
Outside Diameter:: 55mm
Width:: 32mm
Seals / Shields:: None
Style:: Precision Angular Contact Spindle Bearings
Contact Angle:: 60 Degree contact angle

Technical

---	Bearing dimensions
d	30mm
D	55mm
B	32mm
C	16mm
d<sub>1</sub>	47mm
B<sub>1</sub>	8mm
r<sub> min</sub>	1mm
r<sub>1 min</sub>	0.15mm
---	Abutment dimensions
d<sub>s</sub>	3.2mm
n<sub>s</sub>	4.8mm
d<sub>a</sub> h12	40.5mm
D<sub>a</sub> H12	50.5mm
r<sub>a max</sub>	1mm
r<sub>a1 max</sub>	0.15mm
---	Speeds, weights and loads
Dynamic load C<sub>a</sub>	15300 N
Static load C<sub>oa</sub>	36000 N
Speed in grease <sub>ng</sub>	11000 rpm
Speed in oil <sub>ng</sub>	16000 rpm
prelaod force F<sub>v</sub>	108 N
Lift off force K<sub>aE</sub>	308 N
Axial rigidity C<sub>a</sub>	276 N/μm
Weight	0.29kg
