• FAG 234408MSP Super Precision Double Axial Angular Contact Spindle Bearing 40x68x36mm
  • FAG
1 2

SKU: 234408-M-SP-FAG

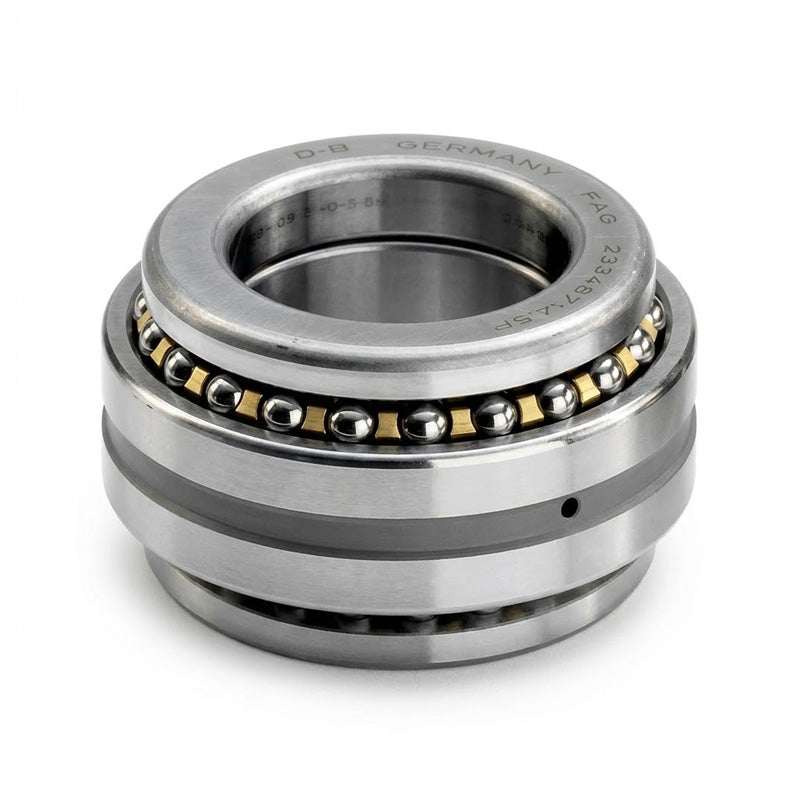

FAG 234408MSP Super Precision Double Axial Angular Contact Spindle Bearing 40x68x36mm

FAG 234408MSP Super Precision Double Axial Angular Contact Spindle Bearing 40x68x36mm
$603.29 ex VAT
$603.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $404.10
5+ $381.40
10+ $376.86
25+ $372.32
49+ $367.78
74+ $363.24
99+ $340.54
199+ $336.00
249+ $331.46
499+ $326.92
999+ $317.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
36mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 36mm
C 18mm
d<sub>1</sub> 58.5mm
B<sub>1</sub> 9mm
r<sub> min</sub> 1mm
r<sub>1 min</sub> 0.15mm
--- Abutment dimensions
d<sub>s</sub> 3.2mm
n<sub>s</sub> 4.8mm
d<sub>a</sub> h12 51.5mm
D<sub>a</sub> H12 63.5mm
r<sub>a max</sub> 1mm
r<sub>a1 max</sub> 0.15mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 22900 N
Static load C<sub>oa</sub> 59000 N
Speed in grease <sub>ng</sub> 8500 rpm
Speed in oil <sub>ng</sub> 12000 rpm
prelaod force F<sub>v</sub> 160 N
Lift off force K<sub>aE</sub> 456 N
Axial rigidity C<sub>a</sub> 354 N/&mu;m
Weight 0.463kg
