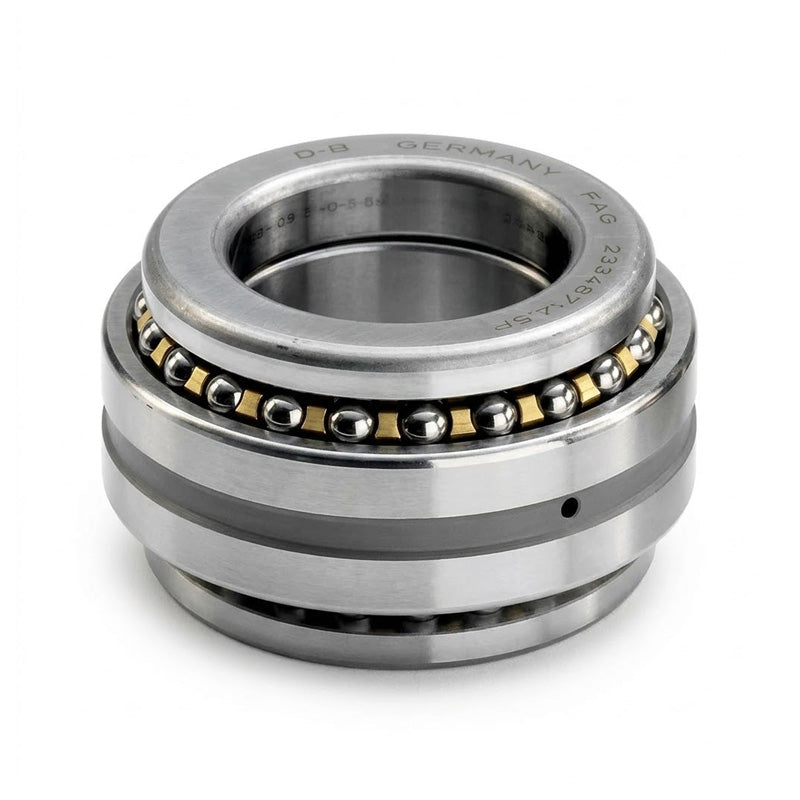

• FAG 234410MSP Super Precision Double Axial Angular Contact Spindle Bearing 50x80x38mm
  • FAG
1 2

SKU: 234410-M-SP-FAG

FAG 234410MSP Super Precision Double Axial Angular Contact Spindle Bearing 50x80x38mm

FAG 234410MSP Super Precision Double Axial Angular Contact Spindle Bearing 50x80x38mm
$619.70 ex VAT
$619.70 ex VAT
Sale Sold out

In stock

Price Break
3+ $415.10
5+ $391.78
10+ $387.11
25+ $382.45
49+ $377.78
74+ $373.12
99+ $349.80
199+ $345.14
249+ $340.47
499+ $335.81
999+ $326.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Width:
38mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 50mm
D 80mm
B 38mm
C 19mm
d<sub>1</sub> 70mm
B<sub>1</sub> 9.5mm
r<sub> min</sub> 1mm
r<sub>1 min</sub> 0.15mm
--- Abutment dimensions
d<sub>s</sub> 3.2mm
n<sub>s</sub> 4.8mm
d<sub>a</sub> h12 62.5mm
D<sub>a</sub> H12 75mm
r<sub>a max</sub> 1mm
r<sub>a1 max</sub> 0.15mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 26000 N
Static load C<sub>oa</sub> 72000 N
Speed in grease <sub>ng</sub> 7000 rpm
Speed in oil <sub>ng</sub> 9500 rpm
prelaod force F<sub>v</sub> 183 N
Lift off force K<sub>aE</sub> 522 N
Axial rigidity C<sub>a</sub> 410 N/&mu;m
Weight 0.629kg
