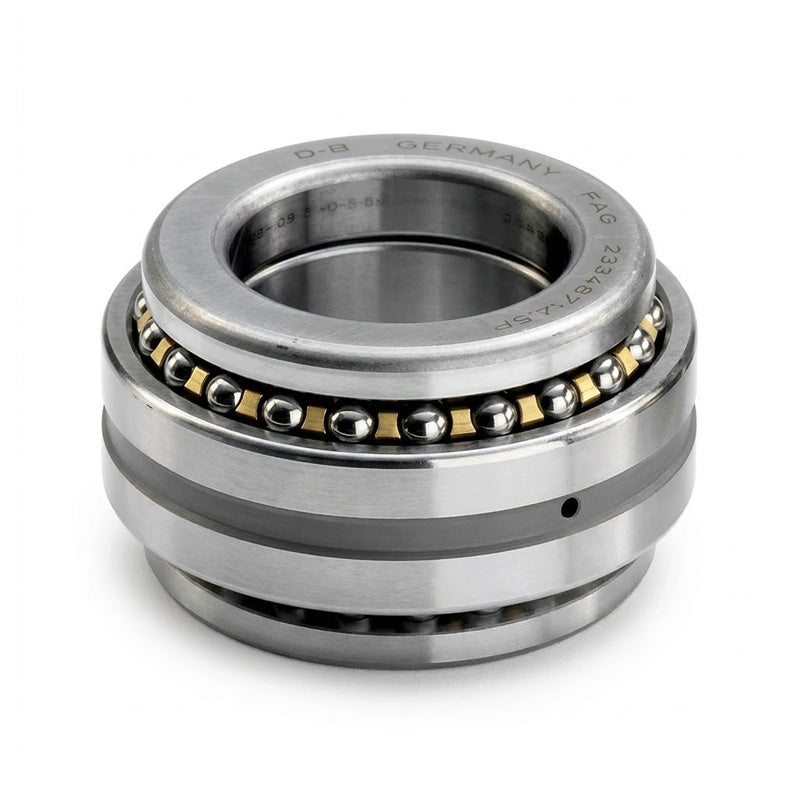

• FAG 234411MSP Super Precision Double Axial Angular Contact Spindle Bearing 55x90x44mm
  • FAG
1 2

SKU: 234411-M-SP-FAG

FAG 234411MSP Super Precision Double Axial Angular Contact Spindle Bearing 55x90x44mm

FAG 234411MSP Super Precision Double Axial Angular Contact Spindle Bearing 55x90x44mm
$705.90 ex VAT
$705.90 ex VAT
Sale Sold out

In stock

Price Break
3+ $472.83
5+ $446.27
10+ $440.95
25+ $435.64
49+ $430.33
74+ $425.02
99+ $398.45
199+ $393.14
249+ $387.83
499+ $382.51
999+ $371.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
44mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 44mm
C 22mm
d<sub>1</sub> 78mm
B<sub>1</sub> 11mm
r<sub> min</sub> 1.1mm
r<sub>1 min</sub> 0.3mm
--- Abutment dimensions
d<sub>s</sub> 3.2mm
n<sub>s</sub> 6.5mm
d<sub>a</sub> h12 69mm
D<sub>a</sub> H12 84.5mm
r<sub>a max</sub> 1.1mm
r<sub>a1 max</sub> 0.3mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 36500 N
Static load C<sub>oa</sub> 99000 N
Speed in grease <sub>ng</sub> 6300 rpm
Speed in oil <sub>ng</sub> 8500 rpm
prelaod force F<sub>v</sub> 260 N
Lift off force K<sub>aE</sub> 743 N
Axial rigidity C<sub>a</sub> 458 N/&mu;m
Weight 0.944kg
