• FAG 234412MSP Super Precision Double Axial Angular Contact Spindle Bearing 60x95x44mm
  • FAG
1 2

SKU: 234412-M-SP-FAG

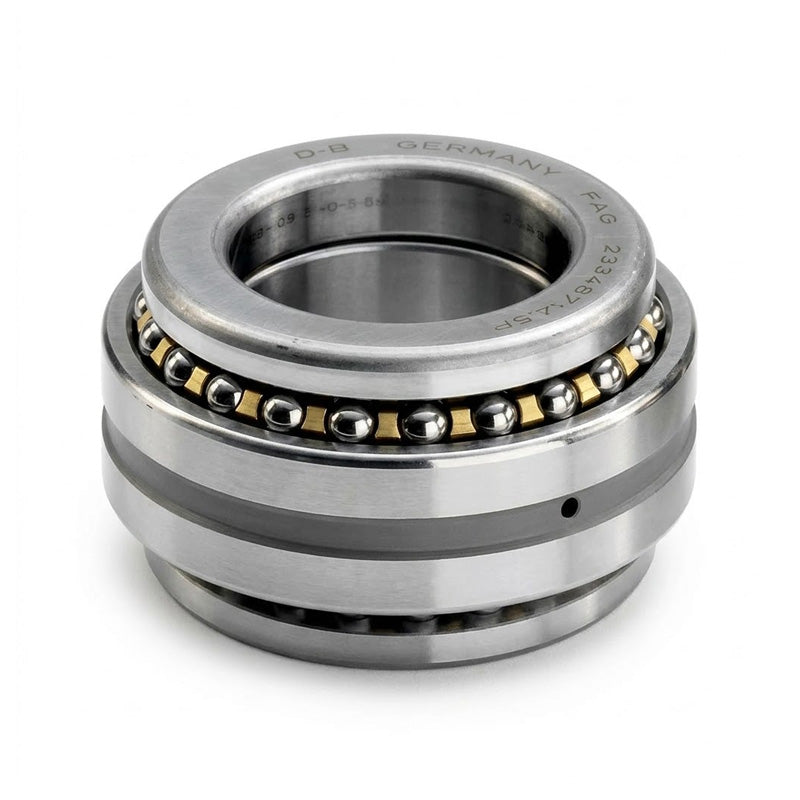

FAG 234412MSP Super Precision Double Axial Angular Contact Spindle Bearing 60x95x44mm

FAG 234412MSP Super Precision Double Axial Angular Contact Spindle Bearing 60x95x44mm
$865.95 ex VAT
$865.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $580.04
5+ $547.45
10+ $540.94
25+ $534.42
49+ $527.90
74+ $521.38
99+ $488.80
199+ $482.28
249+ $475.76
499+ $469.25
999+ $456.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
44mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 44mm
C 22mm
d<sub>1</sub> 83mm
B<sub>1</sub> 11mm
r<sub> min</sub> 1.1mm
r<sub>1 min</sub> 0.3mm
--- Abutment dimensions
d<sub>s</sub> 3.2mm
n<sub>s</sub> 6.5mm
d<sub>a</sub> h12 74mm
D<sub>a</sub> H12 89.5mm
r<sub>a max</sub> 1.1mm
r<sub>a1 max</sub> 0.3mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 36000 N
Static load C<sub>oa</sub> 98000 N
Speed in grease <sub>ng</sub> 6000 rpm
Speed in oil <sub>ng</sub> 8000 rpm
prelaod force F<sub>v</sub> 255 N
Lift off force K<sub>aE</sub> 728 N
Axial rigidity C<sub>a</sub> 455 N/&mu;m
Weight 1.01kg
