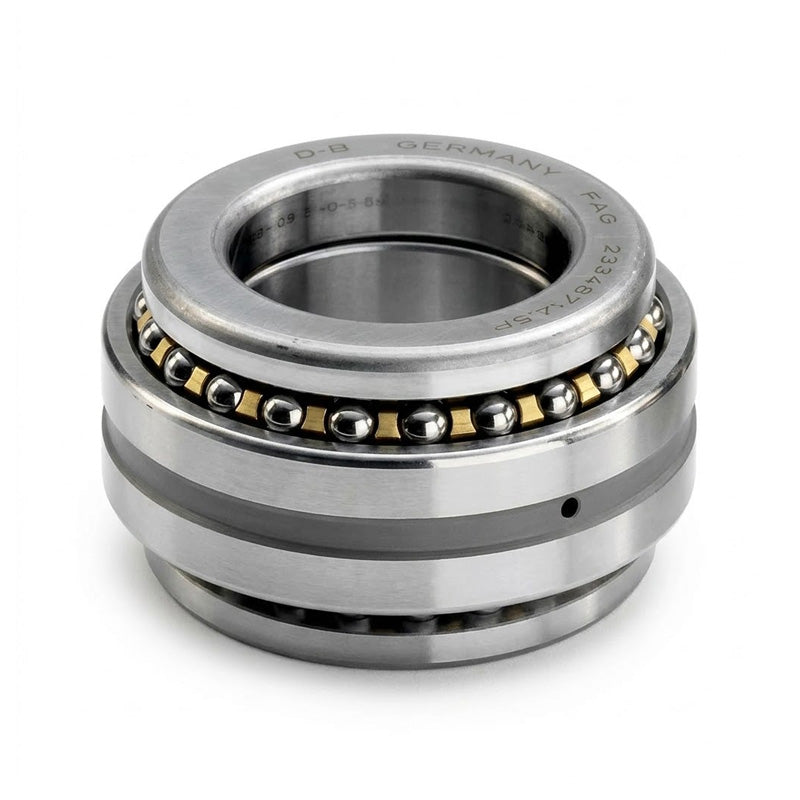

• FAG 234417MSP Super Precision Double Axial Angular Contact Spindle Bearing 85x130x54mm
  • FAG
1 2

SKU: 234417-M-SP-FAG

FAG 234417MSP Super Precision Double Axial Angular Contact Spindle Bearing 85x130x54mm

FAG 234417MSP Super Precision Double Axial Angular Contact Spindle Bearing 85x130x54mm
$1,009.60 ex VAT
$1,009.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $676.26
5+ $638.27
10+ $630.67
25+ $623.07
49+ $615.47
74+ $607.87
99+ $569.88
199+ $562.28
249+ $554.68
499+ $547.08
999+ $531.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
85mm
Outside Diameter:
130mm
Width:
54mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 85mm
D 130mm
B 54mm
C 27mm
d<sub>1</sub> 115mm
B<sub>1</sub> 13.5mm
r<sub> min</sub> 1.1mm
r<sub>1 min</sub> 0.3mm
--- Abutment dimensions
d<sub>s</sub> 4.8mm
n<sub>s</sub> 9.5mm
d<sub>a</sub> h12 103.5mm
D<sub>a</sub> H12 122mm
r<sub>a max</sub> 1.1mm
r<sub>a1 max</sub> 0.3mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 57000 N
Static load C<sub>oa</sub> 181000 N
Speed in grease <sub>ng</sub> 4500 rpm
Speed in oil <sub>ng</sub> 6000 rpm
prelaod force F<sub>v</sub> 400 N
Lift off force K<sub>aE</sub> 1140 N
Axial rigidity C<sub>a</sub> 655 N/&mu;m
Weight 2.25kg
