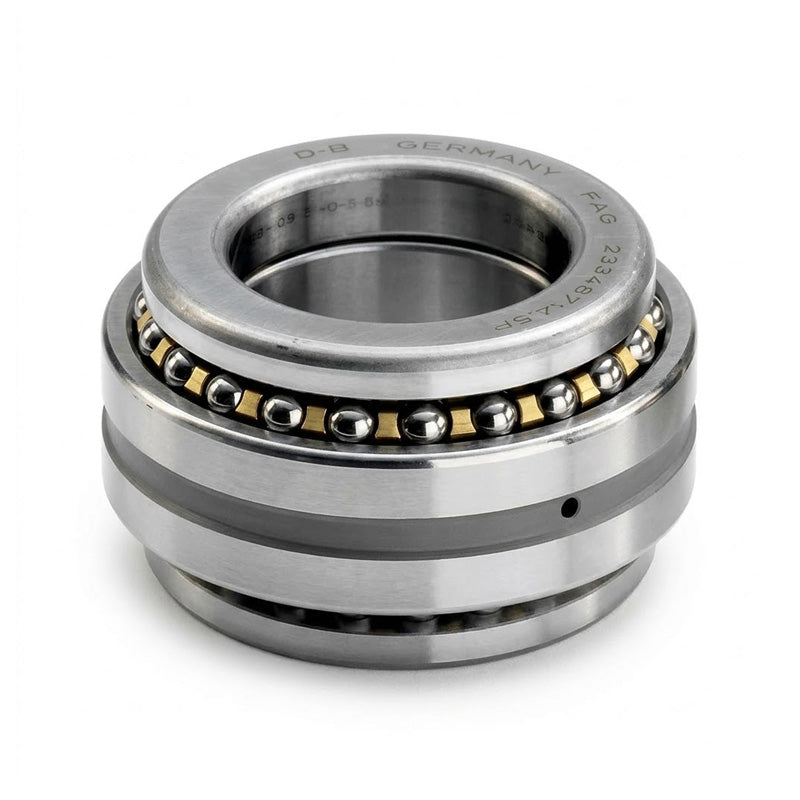

• FAG 234422MSP Super Precision Double Axial Angular Contact Spindle Bearing 110x170x72mm
  • FAG
1 2

SKU: 234422-M-SP-FAG

FAG 234422MSP Super Precision Double Axial Angular Contact Spindle Bearing 110x170x72mm

FAG 234422MSP Super Precision Double Axial Angular Contact Spindle Bearing 110x170x72mm
$1,280.45 ex VAT
$1,280.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $857.68
5+ $809.50
10+ $799.86
25+ $790.23
49+ $780.59
74+ $770.95
99+ $722.77
199+ $713.13
249+ $703.49
499+ $693.86
999+ $674.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
110mm
Outside Diameter:
170mm
Width:
72mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 110mm
D 170mm
B 72mm
C 36mm
d<sub>1</sub> 150mm
B<sub>1</sub> 18mm
r<sub> min</sub> 2mm
r<sub>1 min</sub> 0.6mm
--- Abutment dimensions
d<sub>s</sub> 4.8mm
n<sub>s</sub> 9.5mm
d<sub>a</sub> h12 134.5mm
D<sub>a</sub> H12 160mm
r<sub>a max</sub> 2mm
r<sub>a1 max</sub> 0.6mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 98000 N
Static load C<sub>oa</sub> 325000 N
Speed in grease <sub>ng</sub> 3400 rpm
Speed in oil <sub>ng</sub> 4500 rpm
prelaod force F<sub>v</sub> 695 N
Lift off force K<sub>aE</sub> 1983 N
Axial rigidity C<sub>a</sub> 853 N/&mu;m
Weight 5.19kg
