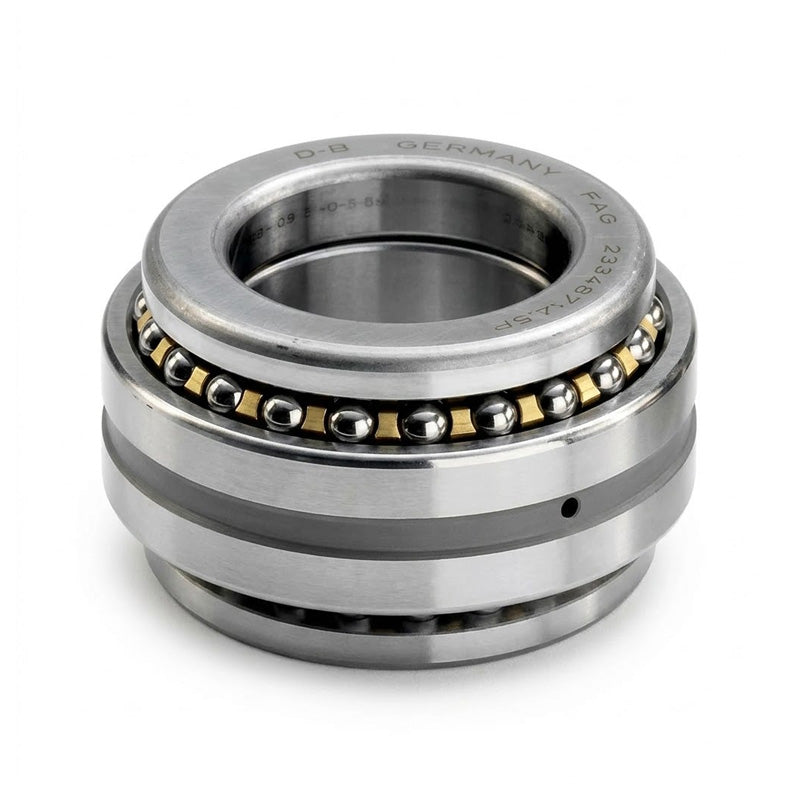

• FAG 234424MSP Super Precision Double Axial Angular Contact Spindle Bearing 120x180x72mm
  • FAG
1 2

SKU: 234424-M-SP-FAG

FAG 234424MSP Super Precision Double Axial Angular Contact Spindle Bearing 120x180x72mm

FAG 234424MSP Super Precision Double Axial Angular Contact Spindle Bearing 120x180x72mm
$1,352.28 ex VAT
$1,352.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $905.80
5+ $854.91
10+ $844.73
25+ $834.56
49+ $824.38
74+ $814.20
99+ $763.31
199+ $753.14
249+ $742.96
499+ $732.78
999+ $712.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
120mm
Outside Diameter:
180mm
Width:
72mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 120mm
D 180mm
B 72mm
C 36mm
d<sub>1</sub> 160mm
B<sub>1</sub> 18mm
r<sub> min</sub> 2mm
r<sub>1 min</sub> 0.6mm
--- Abutment dimensions
d<sub>s</sub> 4.8mm
n<sub>s</sub> 9.5mm
d<sub>a</sub> h12 144.5mm
D<sub>a</sub> H12 170mm
r<sub>a max</sub> 2mm
r<sub>a1 max</sub> 0.6mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 101000 N
Static load C<sub>oa</sub> 345000 N
Speed in grease <sub>ng</sub> 3200 rpm
Speed in oil <sub>ng</sub> 4300 rpm
prelaod force F<sub>v</sub> 960 N
Lift off force K<sub>aE</sub> 2736 N
Axial rigidity C<sub>a</sub> 996 N/&mu;m
Weight 5.56kg
