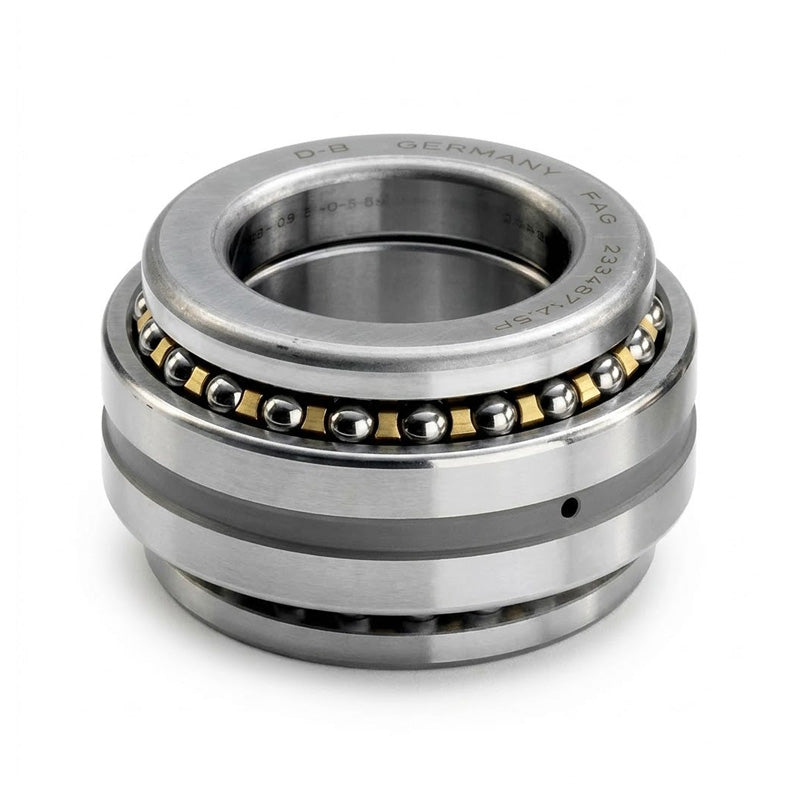

• FAG 234430MSP Super Precision Double Axial Angular Contact Spindle Bearing 150x225x90mm
  • FAG
1 2

SKU: 234430-M-SP-FAG

FAG 234430MSP Super Precision Double Axial Angular Contact Spindle Bearing 150x225x90mm

FAG 234430MSP Super Precision Double Axial Angular Contact Spindle Bearing 150x225x90mm
$3,274.76 ex VAT
$3,274.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $2,193.53
5+ $2,070.30
10+ $2,045.65
25+ $2,021.00
49+ $1,996.36
74+ $1,971.71
99+ $1,848.48
199+ $1,823.83
249+ $1,799.19
499+ $1,774.54
999+ $1,725.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
150mm
Outside Diameter:
225mm
Width:
90mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 150mm
D 225mm
B 90mm
C 45mm
d<sub>1</sub> 200mm
B<sub>1</sub> 22.5mm
r<sub> min</sub> 2.1mm
r<sub>1 min</sub> 0.6mm
--- Abutment dimensions
d<sub>s</sub> 8mm
n<sub>s</sub> 15mm
d<sub>a</sub> h12 181mm
D<sub>a</sub> H12 211.5mm
r<sub>a max</sub> 2.1mm
r<sub>a1 max</sub> 0.6mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 142000 N
Static load C<sub>oa</sub> 520000 N
Speed in grease <sub>ng</sub> 2600 rpm
Speed in oil <sub>ng</sub> 3600 rpm
prelaod force F<sub>v</sub> 1320 N
Lift off force K<sub>aE</sub> 3764 N
Axial rigidity C<sub>a</sub> 1183 N/&mu;m
Weight 10.8kg
