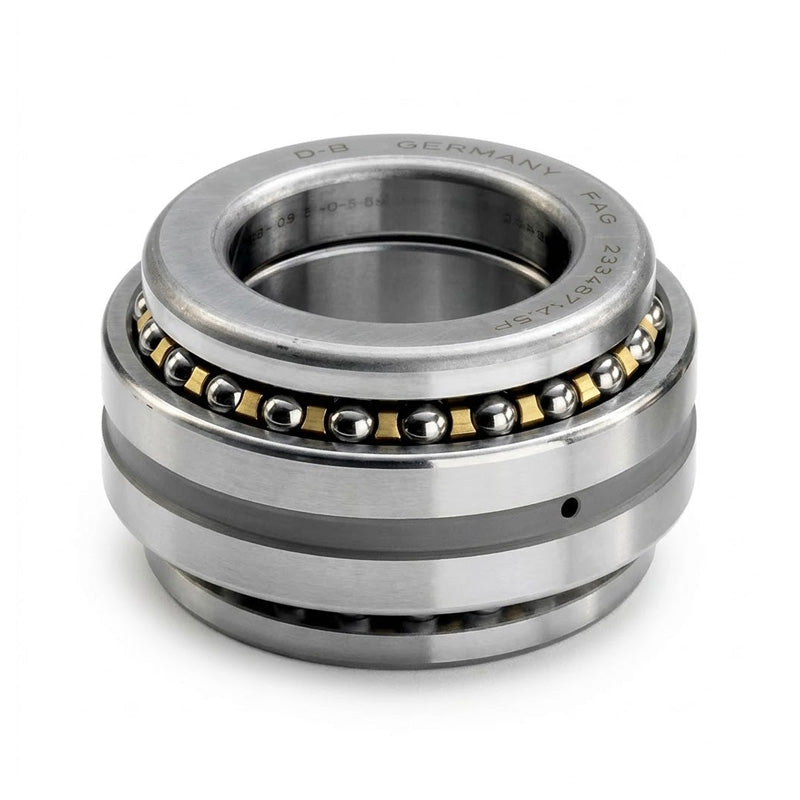

• FAG 234432MSP Super Precision Double Axial Angular Contact Spindle Bearing 160x240x96mm
  • FAG
1 2

SKU: 234432-M-SP-FAG

FAG 234432MSP Super Precision Double Axial Angular Contact Spindle Bearing 160x240x96mm

FAG 234432MSP Super Precision Double Axial Angular Contact Spindle Bearing 160x240x96mm
$4,702.78 ex VAT
$4,702.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $3,150.06
5+ $2,973.09
10+ $2,937.69
25+ $2,902.30
49+ $2,866.91
74+ $2,831.51
99+ $2,654.54
199+ $2,619.15
249+ $2,583.75
499+ $2,548.36
999+ $2,477.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
160mm
Outside Diameter:
240mm
Width:
96mm
Seals / Shields:
None
Style:
Precision Angular Contact Spindle Bearings
Contact Angle:
60 Degree contact angle
Technical
--- Bearing dimensions
d 160mm
D 240mm
B 96mm
C 48mm
d<sub>1</sub> 212mm
B<sub>1</sub> 24mm
r<sub> min</sub> 2.1mm
r<sub>1 min</sub> 0.6mm
--- Abutment dimensions
d<sub>s</sub> 8mm
n<sub>s</sub> 15mm
d<sub>a</sub> h12 192.5mm
D<sub>a</sub> H12 226mm
r<sub>a max</sub> 2.1mm
r<sub>a1 max</sub> 0.6mm
--- Speeds, weights and loads
Dynamic load C<sub>a</sub> 168000 N
Static load C<sub>oa</sub> 600000 N
Speed in grease <sub>ng</sub> 2400 rpm
Speed in oil <sub>ng</sub> 3400 rpm
prelaod force F<sub>v</sub> 1180 N
Lift off force K<sub>aE</sub> 3362 N
Axial rigidity C<sub>a</sub> 1149 N/&mu;m
Weight 12.9kg
