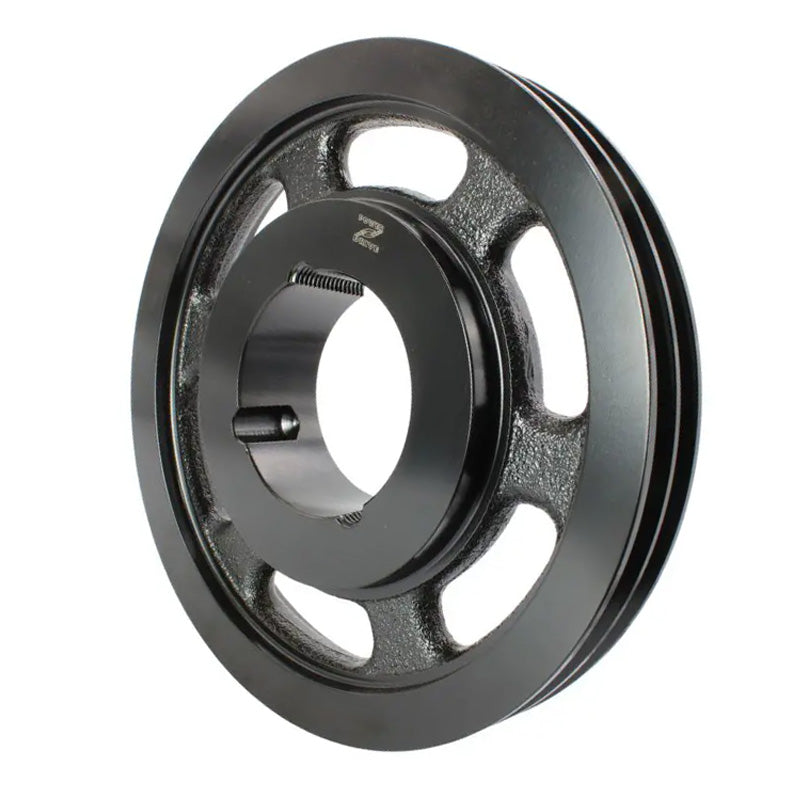

• 236X2SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
  • 236X2SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 2

SKU: 236SPA2-MB

236X2SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

236X2SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$52.83 ex VAT
$52.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.38
5+ $33.39
9+ $33.00
19+ $32.60
49+ $32.20
74+ $31.80
99+ $29.82
199+ $29.42
249+ $29.02
499+ $28.62
999+ $27.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
242.2mm
Pitch Diameter:
236mm
Max Bore:
60mm

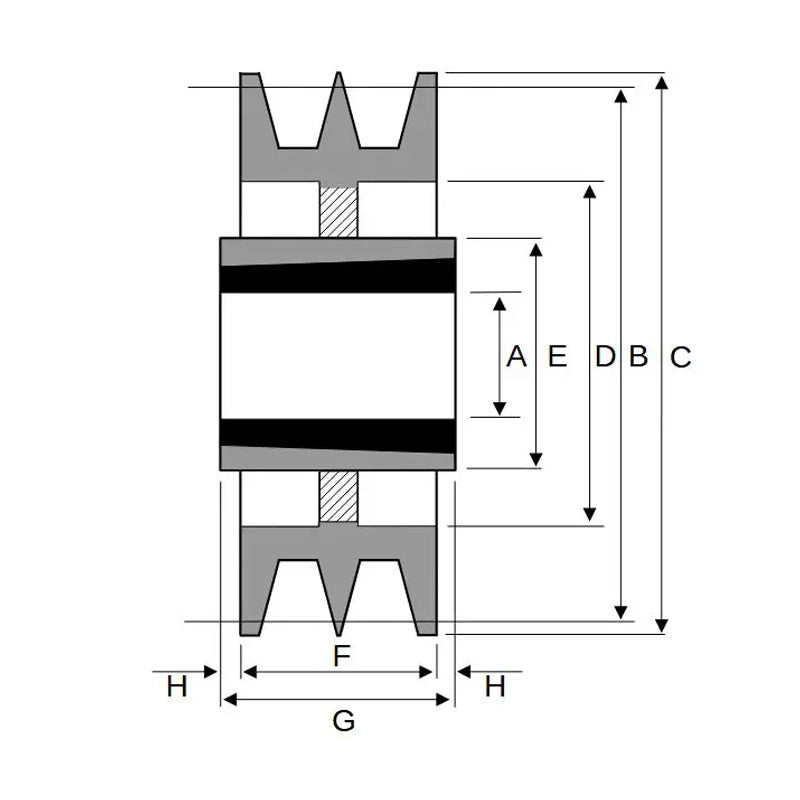

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 236mm
Overall Outer Diameter C 242.2mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 35mm
Bush Seat Length G 45mm
Inner Recess Diameter D 202mm
Inner Recess Length H 0mm
