• 236X3SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 236X3SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 236SPA3-MB

236X3SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

236X3SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$59.37 ex VAT
$59.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.77
5+ $37.53
9+ $37.09
19+ $36.64
49+ $36.19
74+ $35.75
99+ $33.51
199+ $33.06
249+ $32.62
499+ $32.17
999+ $31.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
242.2mm
Pitch Diameter:
236mm
Max Bore:
60mm

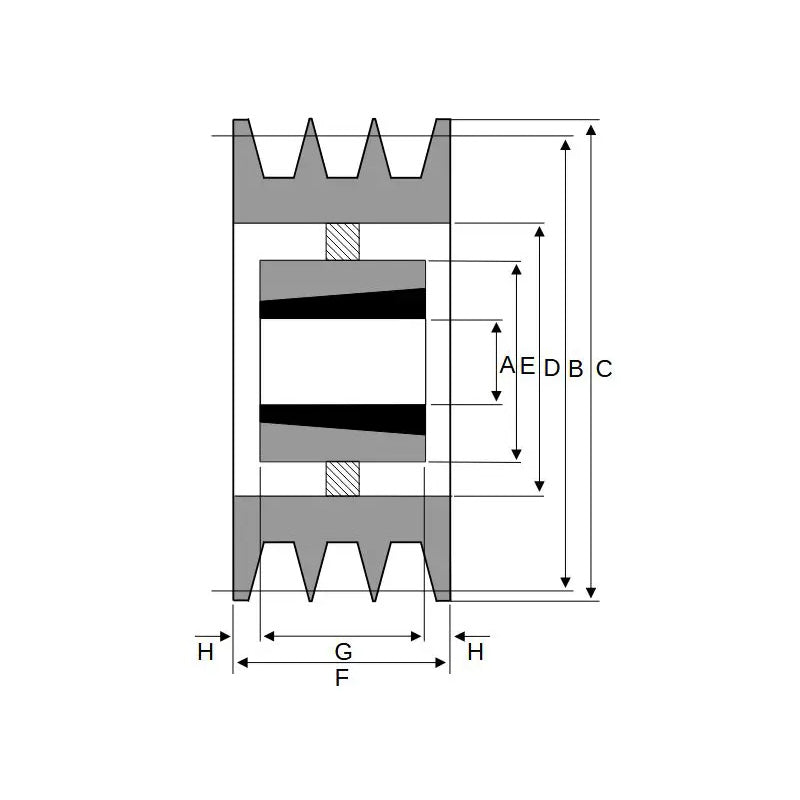

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 236mm
Overall Outer Diameter C 242.2mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 30mm
Bush Seat Length G 45mm
Inner Recess Diameter D 202mm
Inner Recess Length H 2.5mm
