SKU: 236SPA4-MB

236X4SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

236X4SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$133.63 ex VAT
$133.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $89.50
5+ $84.48
9+ $83.47
19+ $82.46
49+ $81.46
74+ $80.45
99+ $75.43
199+ $74.42
249+ $73.41
499+ $72.41
999+ $70.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
241.5mm
Pitch Diameter:
236mm
Max Bore:
75mm

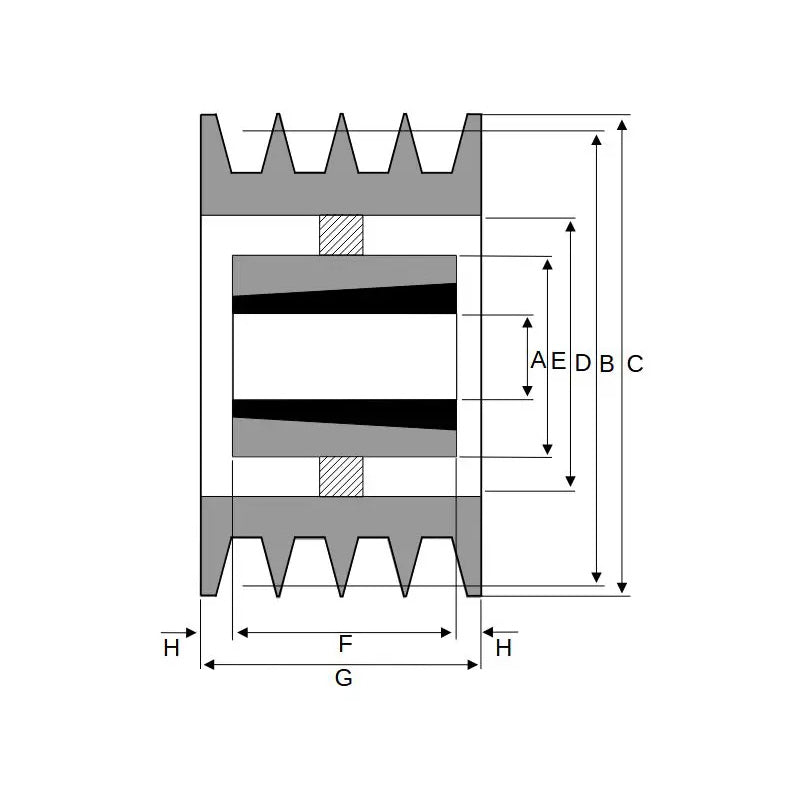

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 236mm
Overall Outer Diameter C 241.5mm
Max Bore A 75mm
Outer Hub Diameter E mm
Overall Sheave Depth F 65mm
Bush Seat Length G 52mm
Inner Recess Length H 13mm
