• 236X6SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 236X6SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 236SPA6-MB

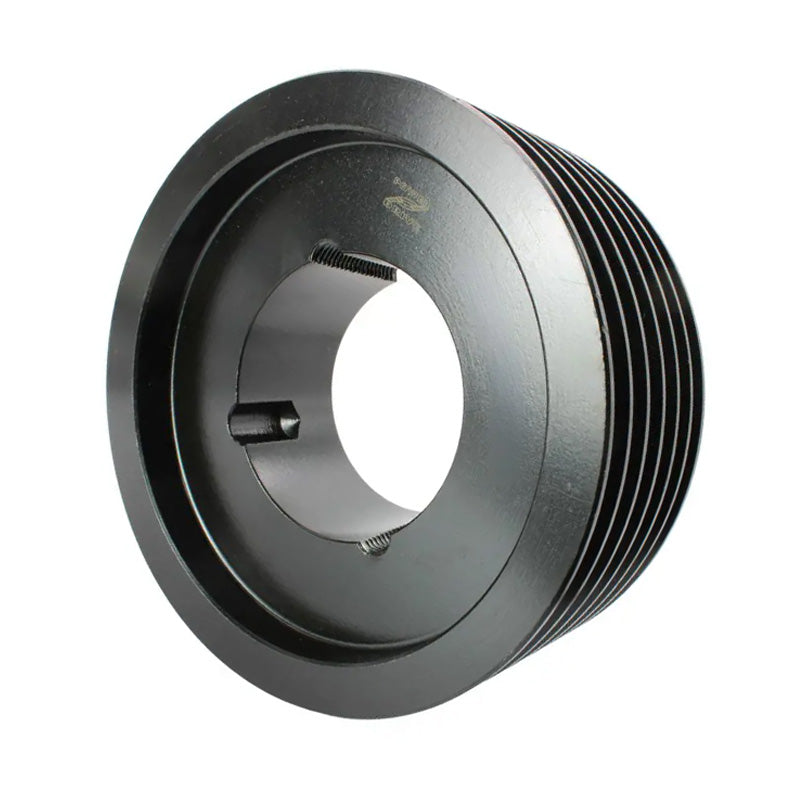

236X6SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

236X6SPA 236mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$106.53 ex VAT
$106.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.36
5+ $67.35
9+ $66.55
19+ $65.74
49+ $64.94
74+ $64.14
99+ $60.13
199+ $59.33
249+ $58.53
499+ $57.73
999+ $56.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
241.5mm
Pitch Diameter:
236mm
Max Bore:
75mm

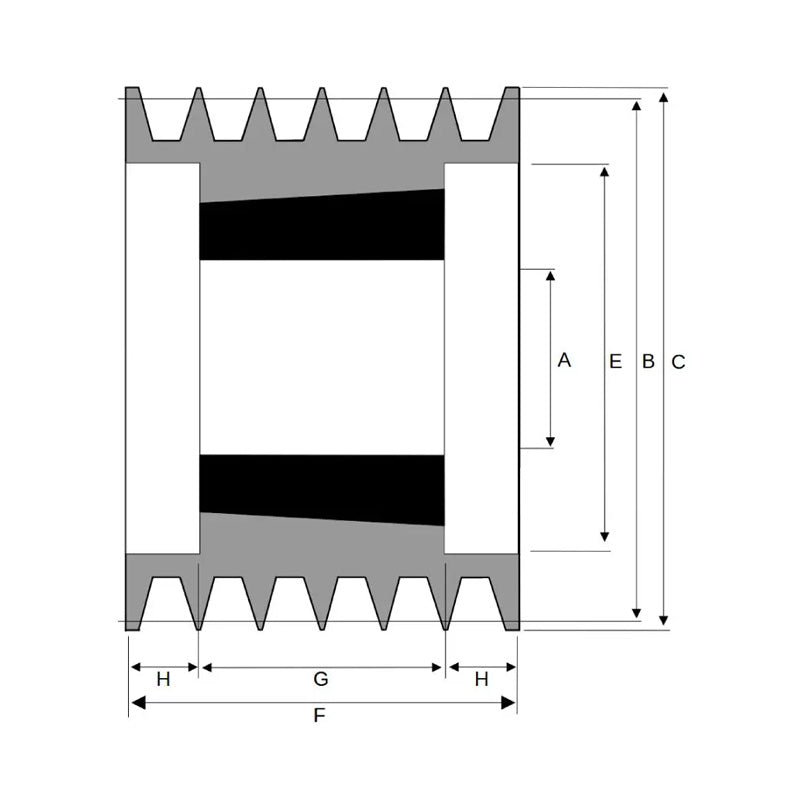

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 236mm
Overall Outer Diameter C 241.5mm
Max Bore A 75mm
Outer Hub Diameter E mm
Overall Sheave Depth F 95mm
Bush Seat Length G 52mm
Inner Recess Length H 21.5mm
