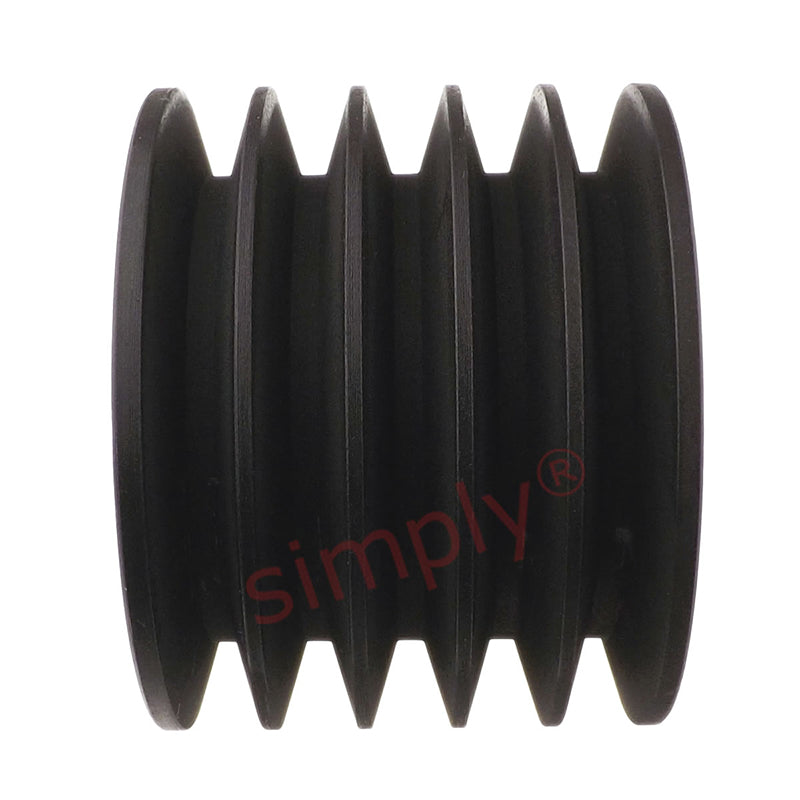

• 236X5SPC 236mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 236SPC5-MB

236X5SPC 236mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

236X5SPC 236mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$184.77 ex VAT
$184.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $123.76
5+ $116.81
9+ $115.42
19+ $114.03
49+ $112.64
74+ $111.25
99+ $104.29
199+ $102.90
249+ $101.51
499+ $100.12
999+ $97.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
246.2mm
Pitch Diameter:
236mm
Max Bore:
90mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 236mm
Overall Outer Diameter C 246.2mm
Max Bore A 90mm
Overall Sheave Depth F 136mm
Bush Seat Length G 65mm
Inner Recess Diameter D 179mm
Inner Recess Length H 35.5mm
