SKU: 241/950ECAF/W33-SKF

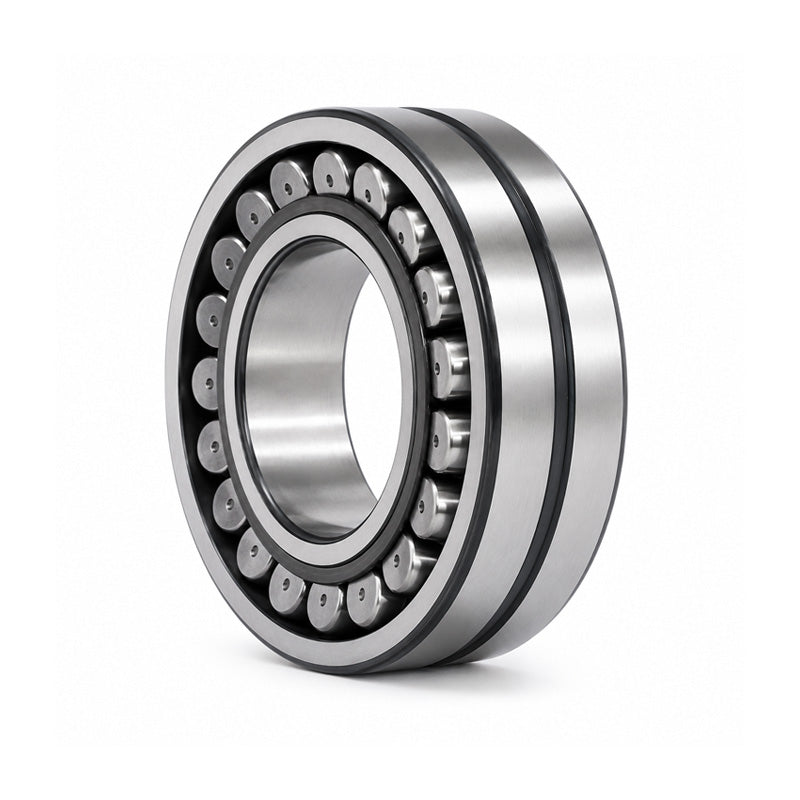

SKF 241950ECAFW33 Spherical Roller Bearing with Cylindrical Bore with Brass Cage 950x1500x545mm
SKF 241950ECAFW33 Spherical Roller Bearing with Cylindrical Bore with Brass Cage 950x1500x545mm
Out of stock
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 950mm
- Outside Diameter:
- 1500mm
- Width:
- 545mm
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 950mm |
| D | 1500mm |
| B | 545mm |
| D1 | 1305mm |
| d2 | 1102mm |
| r1r2 min | 12mm |
| b | 22.3mm |
| K | 12mm |
| da min | 998mm |
| Da max | 1452mm |
| ra max | 10mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 23900 kN |
| Static load Co | 55000 kN |
| Fatigue load limit Pu | 3000 kN |
| Reference speed | 130 rpm |
| Limiting speed | 260 rpm |
| Weight | 3535 kg |
| --- | Factors |
| Calculation factor e | 0.35 |
| Calculation factor Y1 | 1.9 |
| Calculation factor Y2 | 2.9 |
| Calculation factor Y0 | 1.8 |
