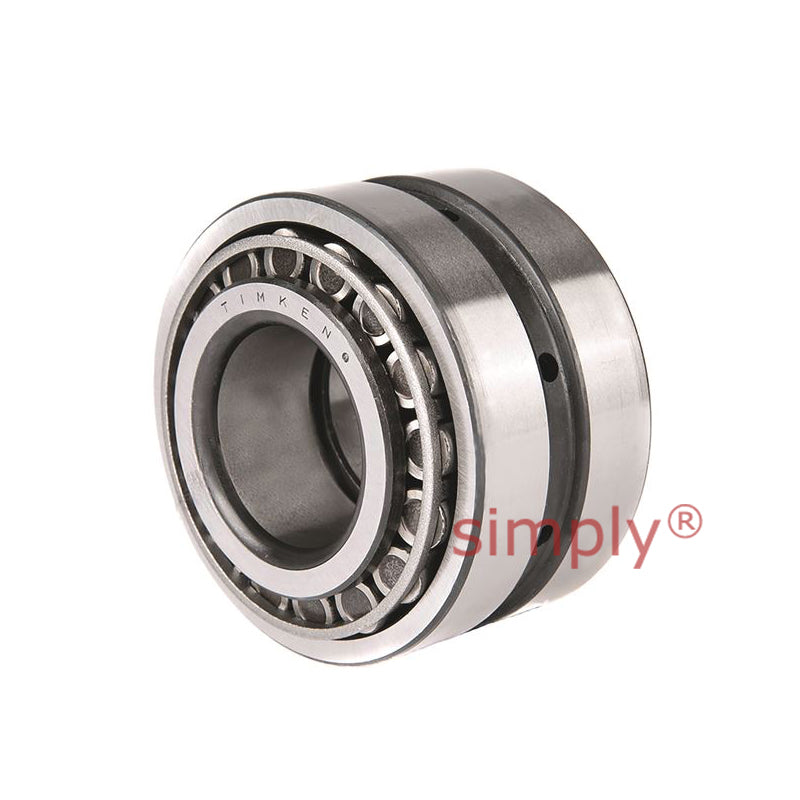

Timken 24780/24720XD TDO Double Outer Race Taper Roller Bearing 1.625x3x1.9375x1.5625 inch
Timken 24780/24720XD TDO Double Outer Race Taper Roller Bearing 1.625x3x1.9375x1.5625 inch
Out of stock
Description
Description

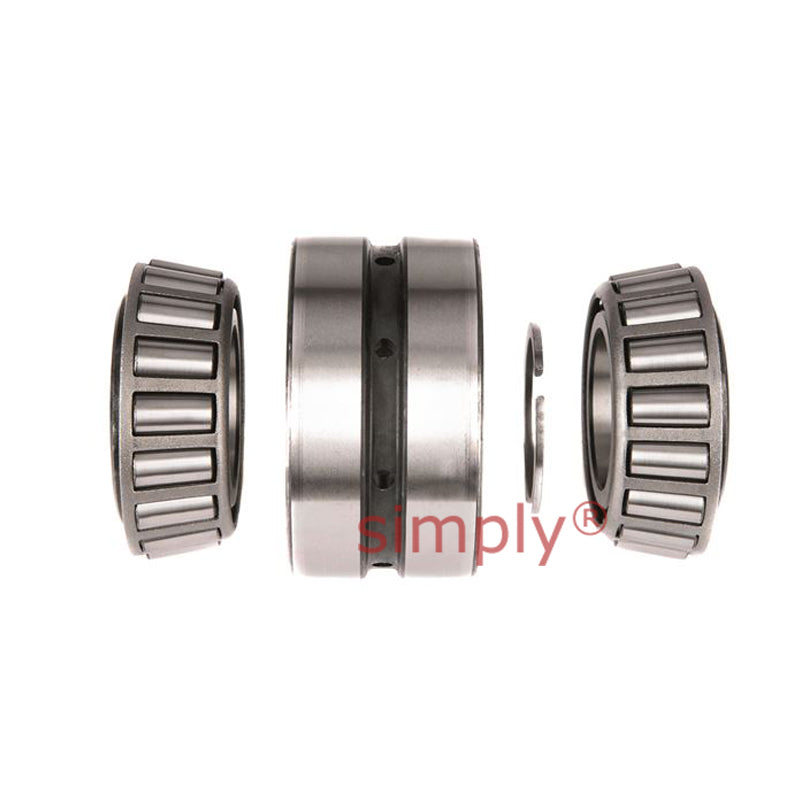

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 41.28mm = 1.625 inch
- Outside Diameter:
- 76.20mm = 3 inch
- Width:
- 49.21mm = 1.9375 inch
Technical
Technical
| d | 41.275mm = 1.625 inch |
|---|---|
| D | 76.2mm = 3 inch |
| T | 49.212mm = 1.9375 inch |
| C | 39.688mm = 1.5625 inch |
| Dynamic (1) C1 | 122000N |
| Factors (5) e | 0.39 |
| Factors (5) Y1 | 1.72 |
| Factors (5) Y2 | 2.56 |
| Dynamic (2) C90 | 18100N |
| Dynamic (2) Ca90 | 12200N |
| Dynamic (2) C90(2) | 31600N |
| Factors (5) K | 1.49 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 54mm = 2.13 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 72mm = 2.83 inch |
| G1 | 26.4 |
| G2 | 12.5 |
| Cg | 0.0767 |
