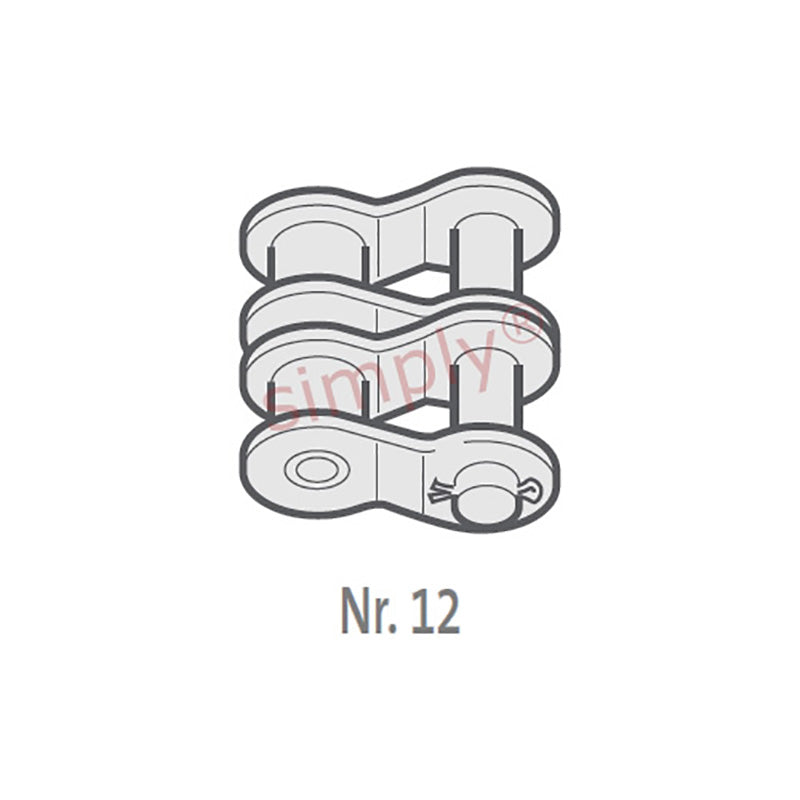

• Renold SD 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
  • Renold
1 2

SKU: 24B-2-SD-NO12-RENOLD

Renold SD 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch

Renold SD 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
$70.49 ex VAT
$70.49 ex VAT
Sale Sold out

In stock

Price Break
2+ $47.21
5+ $44.56
10+ $44.03
29+ $43.50
49+ $42.97
75+ $42.44
100+ $39.79
200+ $39.26
250+ $38.73
500+ $38.19
1000+ $37.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (A) 1.5 inch
Pitch (A) 38.1mm
Inside Width min (B) 25.4mm
Roller Diameter max (C) 25.4mm
Plate Height max (D) 33.3mm
Plate Width Inner max (E) 6mm
Plate Width Outer max (F) 5.2mm
Pin Diameter max (G) 14.63mm
Pin Length max (H2) 101.6mm
Connecting Link Extension max (J) 4.30000000000001mm
Transverse Pitch nom (K) 48.36mm
ISO606 Tensile Strength min 280000 N
Weight 0.19kg/m
