SKU: 24B-2-SYN-NO11-RENOLD
Renold Synergy 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $237.60 ex VAT
- Sale price
- $237.60
- Regular price
-
Not in stock
Quantity Price Breaks
2
$211.46
5
$199.58
10
$197.21
29
$194.83
49
$192.46
75
$190.08
100
$178.20
200
$175.82
250
$173.45
500
$171.07
1000
$166.32
SKU:
24B-2-SYN-NO11-RENOLD
Renold Synergy 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $237.60 ex VAT
- Sale price
- $237.60
- Regular price
-
Description

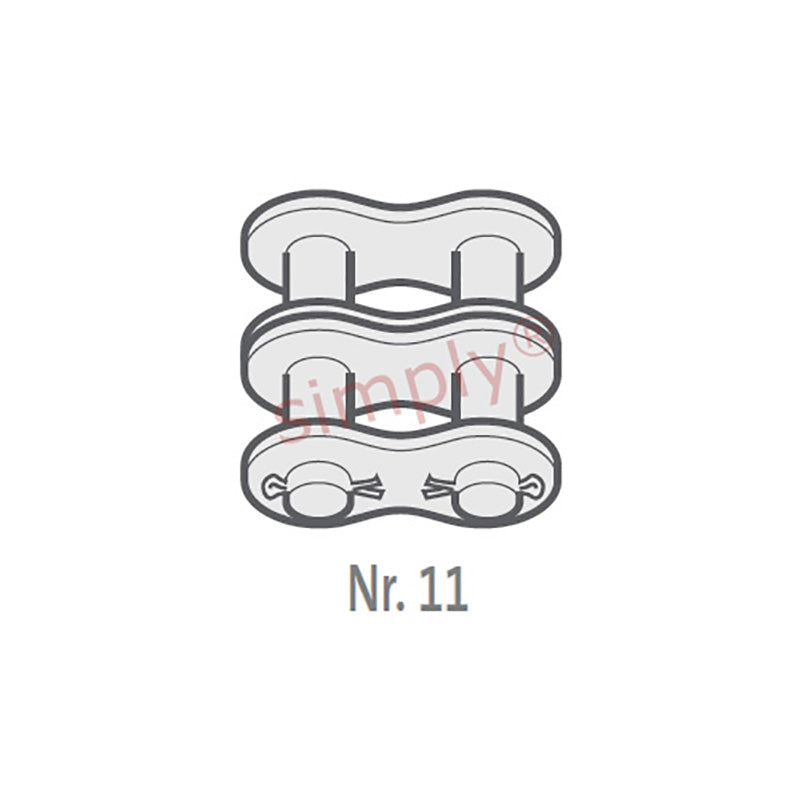

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H2) | = | 101.3mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| Transverse Pitch nom (K) | = | 48.36mm |
| ISO606 Tensile Strength min | = | 280000 N |
| Weight | = | 0.19kg/m |
